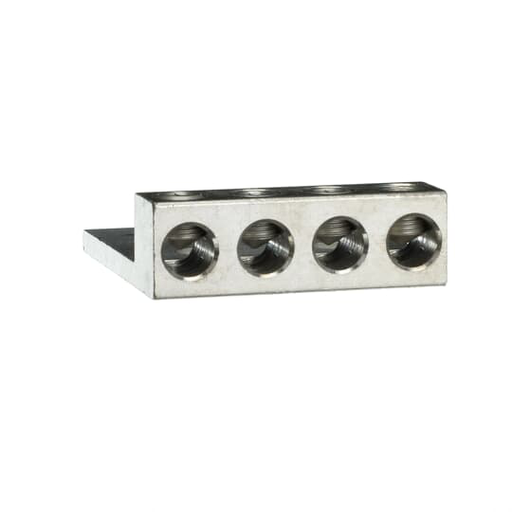

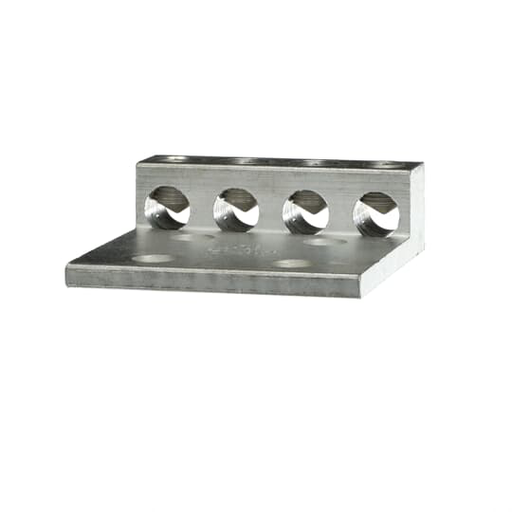

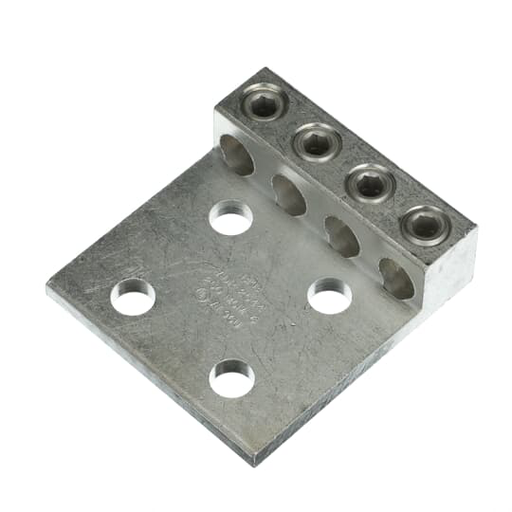

Product image for Blackburn ADR25-44 Extruded Aluminum Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Blackburn ADR25-44 Extruded Aluminum Lug

Manufacturer: Thomas & Betts / Blackburn | Catalog # ADR25-44 | North Coast Part # 51957
$48,486.08/c (100 ea)
ea
Order in multiples of 3 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Type ADR-ALCUL Four-Conductor, Four-Hole Mount for Conductor Range Max 250 kcmil, Min 6 Str.

Technical Information

Bolt Size
1/2 in
Conductor Size
6 AWG-250 kcmil
Conductor Type
Copper and Aluminum
Material
Aluminum
Number of Conductors
4
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610150
Finish
Tin Plated
GTiN
00783786610150
Product UPC
78378661015

Dimensions

Length
4 Inch
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
  • UL 486B tested, AL9CU rated
Certifications
  • CSA
  • UL
Features
  • Easy Installation - no special tools required.
