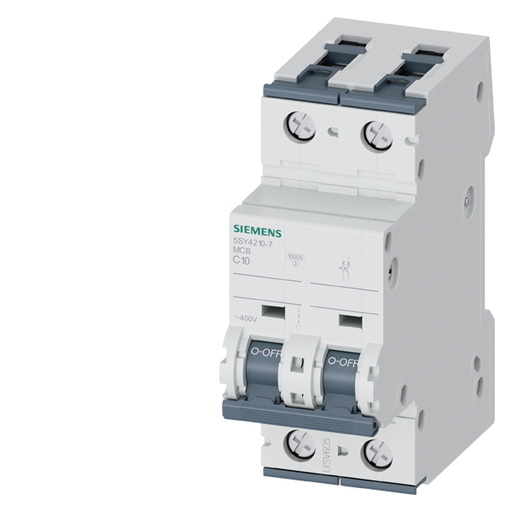

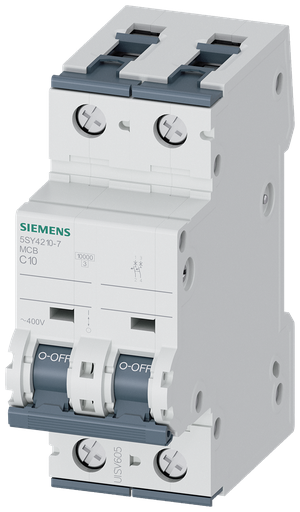

Siemens 5SY4210-7 10 Amp Curve C 2-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4210-7 | North Coast Part # 519975
$104.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY4 Miniature Circuit Breaker, 2 Poles, 480/277V, 10A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
10 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
10 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
CSA,E2186,UL
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554862361
Class
C
GTiN
00754554862361
Product UPC
75455486236
Weight
0.675 lb

Dimensions

Height
3.2 Inch
Length
3-3/4 Inch
Width
1.600 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.028 kg
Green End-of-Life CO2
0.324 kg
Green Manufacturing CO2
1.126 kg
Green Total CO2
15.69 kg
Green Transport-to-DC CO2
0.236 kg
Green Use-Phase CO2
13.976 kg
