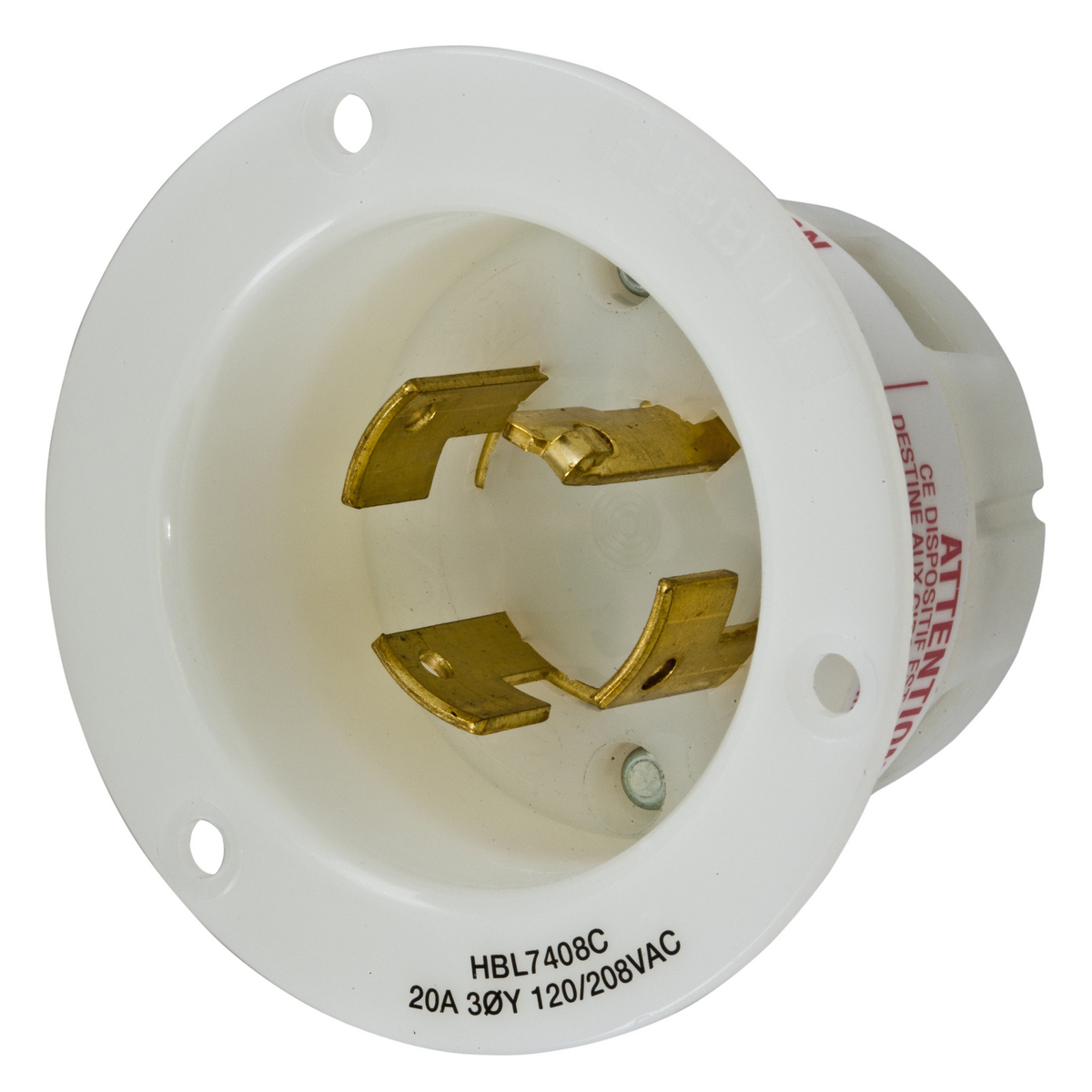

Hubbell HBL7408C Locking Flanged-INLT, 4P4W, 20A 120/208V, WH

Manufacturer: Hubbell / Kellems | Catalog # HBL7408C | North Coast Part # 52089
$127.25/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Non-Reversing
Voltage
120/208 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
16-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Inlets

General Product Info

12-Digit UPC
783585037547
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585037547
Product UPC
78358503754
Weight
0.25 lb

Dimensions

Height
2.3 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product
