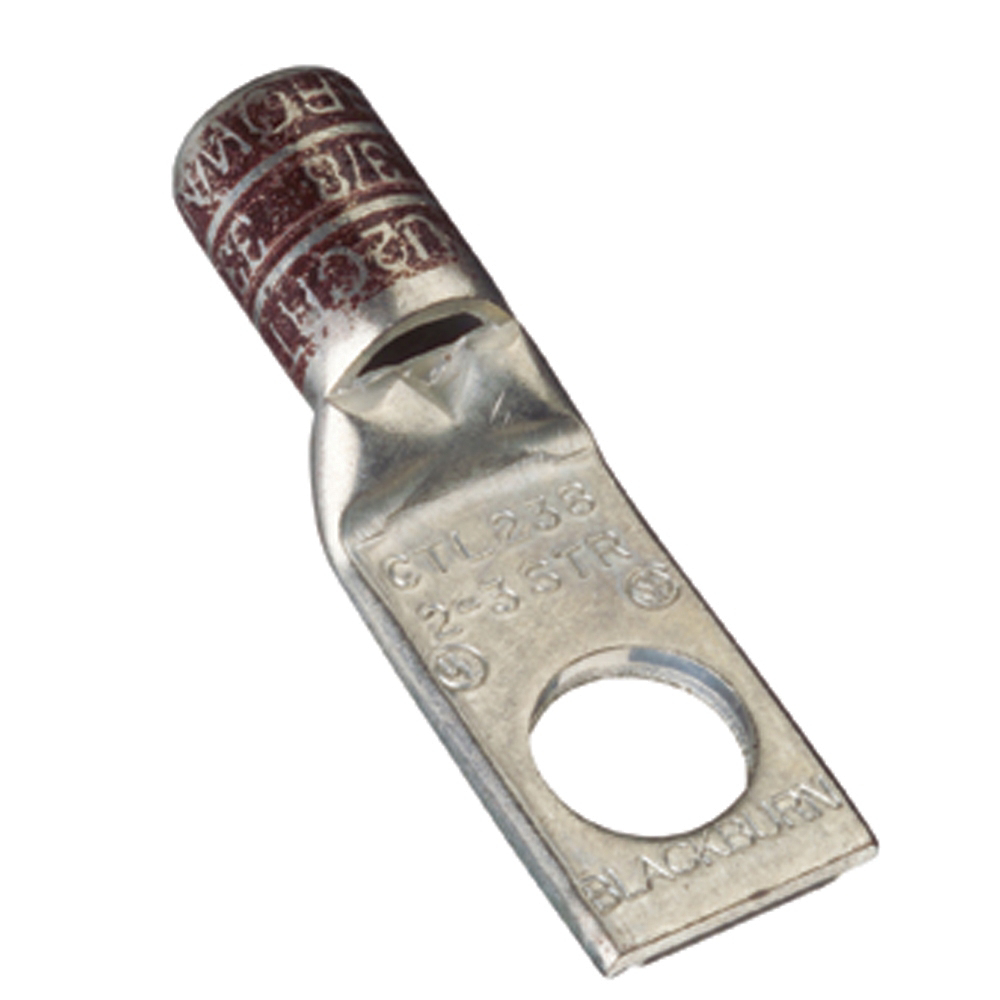

Blackburn CTL2-12 Compression Terminal

Manufacturer: Thomas & Betts | Catalog # CTL2-12 | North Coast Part # 521487
$952.71 /c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
15 available

For Pick Up

at Auburn opens monday 5:00am pt
15 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
Copper One-Hole Lug, Short Barrel, Max 35kV, 2 Str. Wire, 1/2 Bolt Size, Tin Plated, Die Color Code Brown

Technical Information

Applications
For Copper Conductors
Barrel Length
19/32 in
Barrel Shape
Standard
Barrel Type
Short
Cable Size
2 AWG
Conductor Size
2 AWG
Die Color
Brown
Material
Copper
Number of Holes
1 Hole
Number of Studs
1
Standard
UL E9809
Stud Size
1/2 in
Tongue Angle
Straight
Tongue Type
Straight
Type
Standard Barrel
Voltage
35 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786131112
Color
Brown
Finish
Tin Plated
GTiN
05415022437898
Product UPC
78378613111

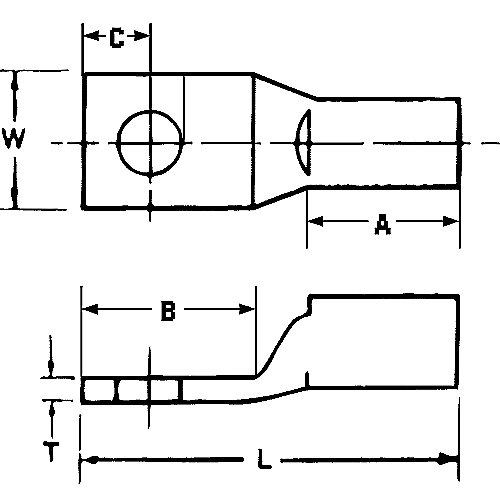

Dimensions

Height
2.3 Inch
Overall Length
1-29/32 in
Width
2.8 in
Certifications
  • UL
  • CSA
Features
  • Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
  • Color-coded for matching die identification.
  • Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
  • Specifically chamfered barrel for ease of installation.
  • UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
Notes
  • For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
