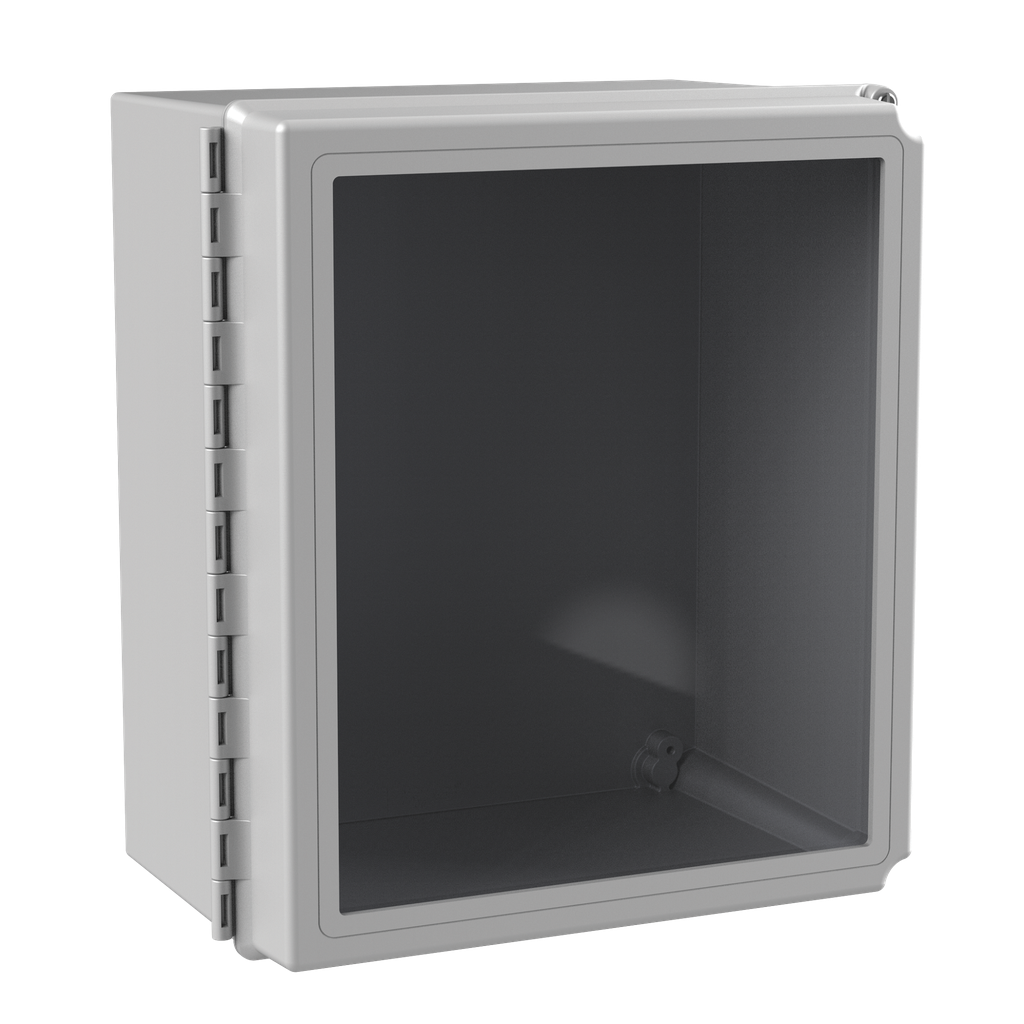

Product image for Hoffman A14128CHSCFGW Continuous Hinge Window Cover Enclosure 4X, 14" x 12" x 8", Light Gray, Fiberglass
Email

Hoffman A14128CHSCFGW Continuous Hinge Window Cover Enclosure 4X, 14" x 12" x 8", Light Gray, Fiberglass

Manufacturer: nVent Hoffman | Catalog # A14128CHSCFGW | North Coast Part # 521826
$369.91/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.

Technical Information

Applications
Controls and Drives; Corrosive Environments
Color Coding
RAL 7035
Cover Type
Continuous Hinge
IP Rating
66
Material
Fiberglass
Mounting Type
Wall
Size
14.00x12.00x8.00 in
Type
Single Door, Double Lock

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510312305
Color
RAL 7035 Gray
GTiN
00783510312305
Product UPC
78351031230
Weight
8.4 lb

Dimensions

Depth
8 Inch
Height
14 Inch
Length
16.6 Inch
Thickness
4 mm
Width
12 in
Features
  • Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
  • Fiberglass is easily punched, drilled, filed or sawed
  • Gasket assures water-tight and dust-tight seal
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
  • Removable hinged cover attached to body with Type 316 stainless steel hinge pin
  • Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
  • Hinge pin and bail are corrosion-resistant Type 316 stainless steel
  • Padlock provisions included
  • Material is halogen-free
