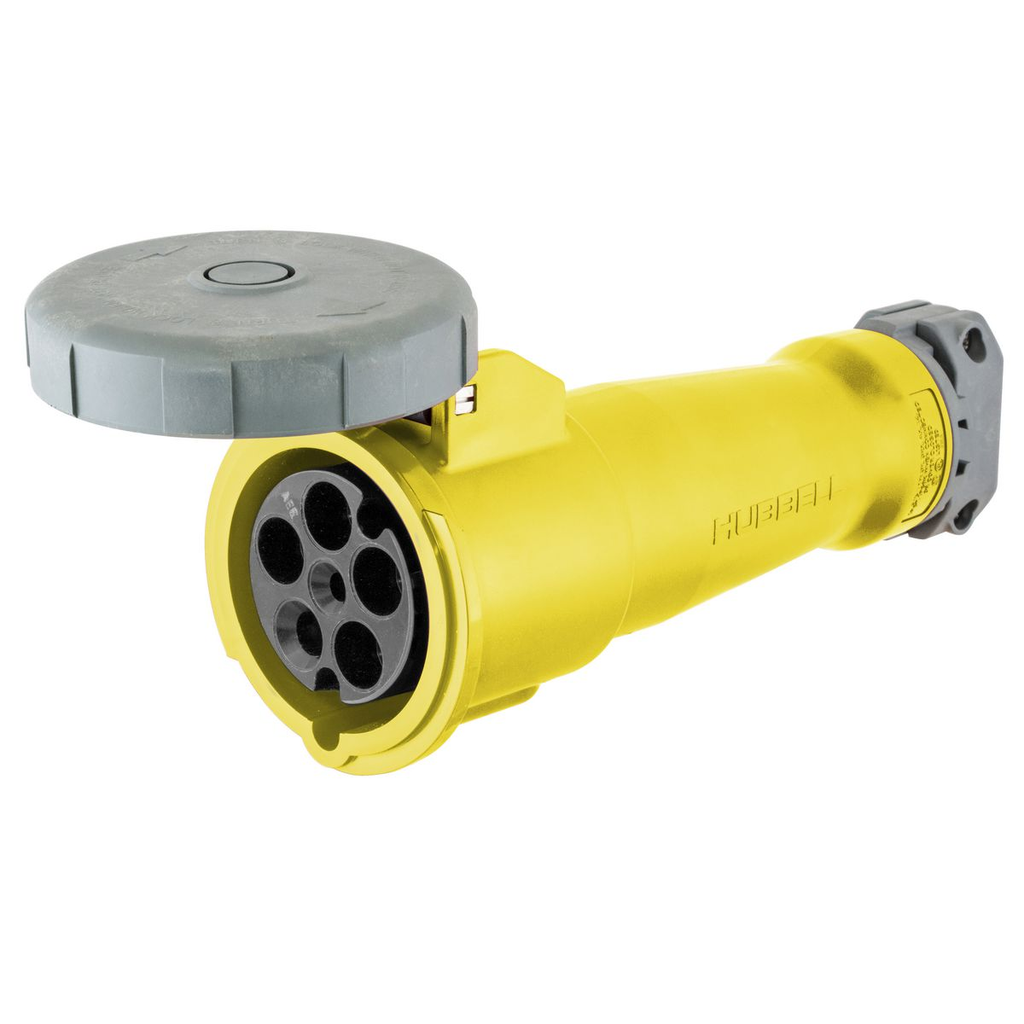

Product image for Hubbell M5100C9 Marine PSC, 4P5W, 100A 120/208V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell M5100C9 Marine PSC, 4P5W, 100A 120/208V

Manufacturer: Hubbell / Kellems | Catalog # M5100C9 | North Coast Part # 52346
$2,011.87/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Technical Information

Amperage
100 Amp
Applications
High Ampacity Connections
Current
100 Amp
Material
Composite
Number of Conductors
5-Wire Grounding
Number of Poles
4-4 Pole
Number of Wires
5 Wire
Rating
100 A
Size
Standard
Standard
CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 degrees C
Type
Watertight Connector
Voltage
120/208 Volt
Wire Count
5

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585510026
Color
Yellow
Environmental Conditions
Watertight
GTiN
00783585510026
Product Series
Corrosion Resistant
Product UPC
78358551002
Weight
4.95 lb

Dimensions

Height
5-1/4 Inch
Length
14 Inch
Width
6.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • Insulated non-metallic housing
  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Watertight
