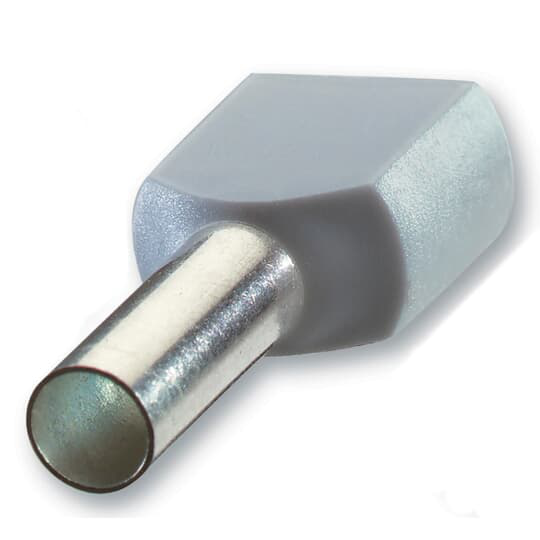

Product image for Thomas & Betts F8010 2 x 12 AWG 2 x 4.00 mm Conductor Range Nylon Insulated Twin Ferrule
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts F8010 2 x 12 AWG 2 x 4.00 mm Conductor Range Nylon Insulated Twin Ferrule

Manufacturer: Thomas & Betts | Catalog # F8010 | North Coast Part # 52724
$306.30/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

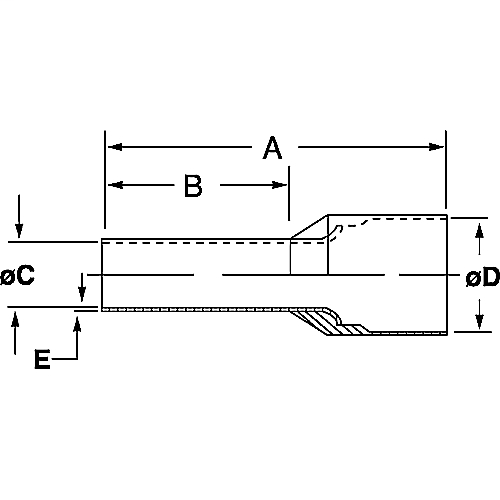

Polypropylene Insulated Twin Ferrule, Length .906 Inches/23.0mm, Pin Length .472 Inches/12mm, Pin Diameter .150 Inches/3.8mm, Base Diameter .339 Inches/8.6mm, Conductor Range 2x12 AWG/2x4.00mm2, Color Gray, Copper, Tin Plated

Technical Information

Conductor Size
12 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Number of Conductors
2
Standard
UL E489056
Strip Length
12 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Twin Ferrule
Wire Size
2x12 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335711
Color
Gray
Finish
Electro Tin Plated
GTiN
05415022157888
Product UPC
78621033571
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • 6MM Die
  • Ferrule dimensions conform to DIN 46228, Part 4.
