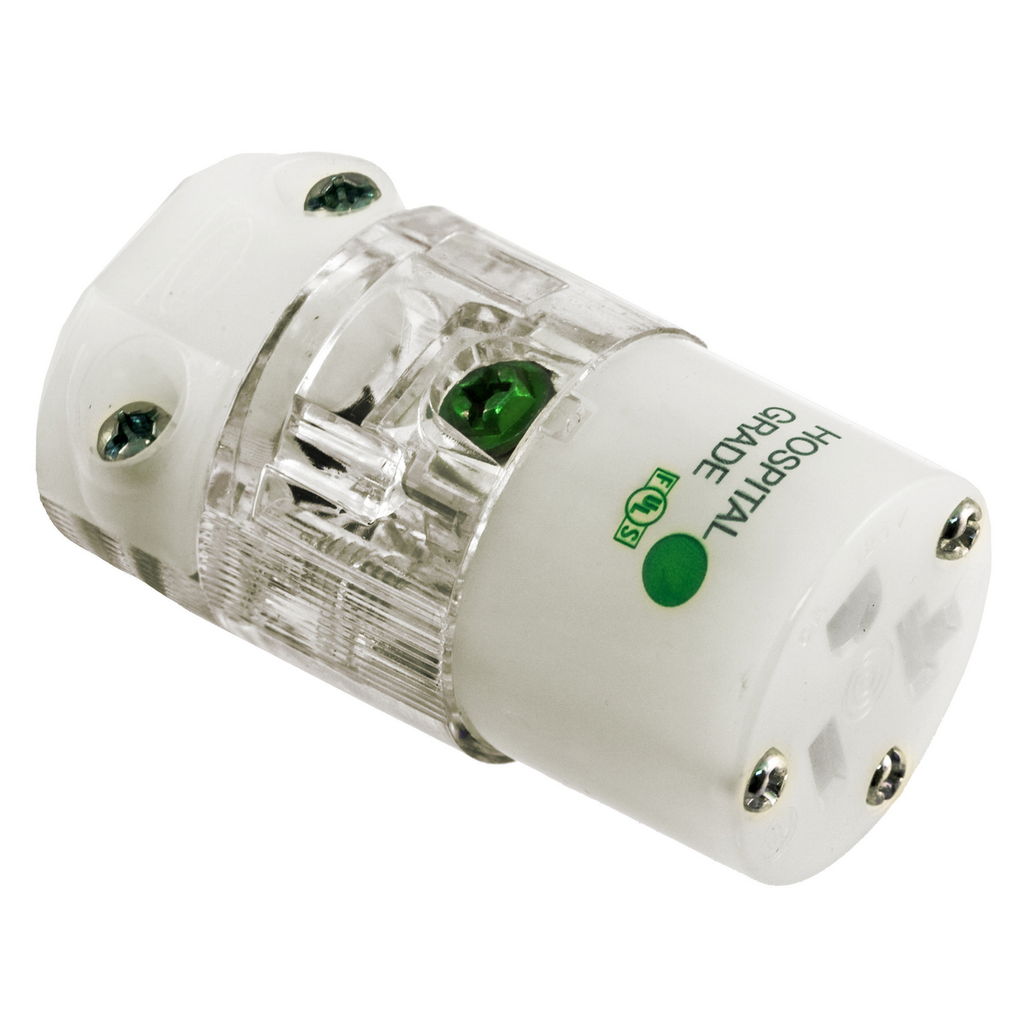

Product image for Hubbell HBL8319CTCONN, HG, 20A 125V, 5-20R, CLR
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL8319CTCONN, HG, 20A 125V, 5-20R, CLR

Manufacturer: Hubbell / Kellems | Catalog # HBL8319CT | North Coast Part # 529704
$100.86/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Clear, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Hospitals
Conductor Size
14-12 AWG
Current
20 Amp
Grade
Hospital
Grounding
Grounding
Horsepower
1 hp
Material
Composite
Mounting Type
Cord
NEMA
5-20R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,No. 42 File 285,UL,UL498 File No. E2186
Style
Insulgrip
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Insulated
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585180557
Color
Clear
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585180557
Product Series
Hospital Grade
Product UPC
78358518055
Weight
0.15 lb

Dimensions

Height
1.53 Inch
Length
2.78 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Beveled housing prevents snagging
  • Powerful, offsetting cord grips clamp on individual conductors
  • Standard Product
