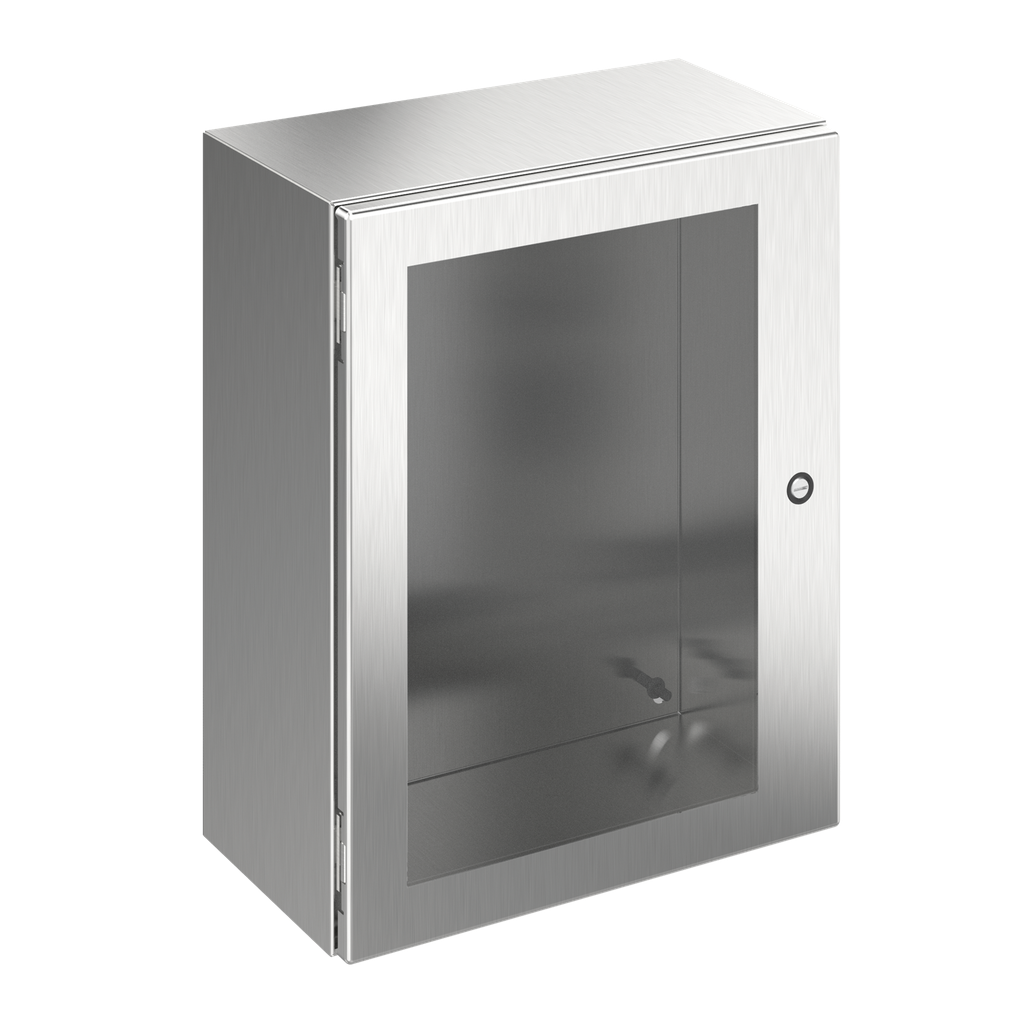

Product image for Hoffman CSD242010WSS Stainless Steel CONCEPT Window-Door Enclosures, 24" x 20" x 10", SS Type 304
Email

Hoffman CSD242010WSS Stainless Steel CONCEPT Window-Door Enclosures, 24" x 20" x 10", SS Type 304

Manufacturer: nVent Hoffman | Catalog # CSD242010WSS | North Coast Part # 53107
$3,874.90/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
For indoor or outdoor applications that require corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.

Technical Information

Applications
Controls and Drives, Corrosive Environments
Body Gauge
16
Body Thickness
1.59 mm
Cover Type
Quarter-Turn Latch
Door Gauge
16
Gauge
16
IP Rating
66
Material
Stainless Steel
Mounting Type
Wall
Number of Latches
1
Size
24.00x20.00x10.00 in
Standard
12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Style
Quarter-turn
Type
Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510128845
Color
Unpainted
Finish
Brushed
GTiN
00783510128845
Product UPC
78351012884
Weight
35.9 lb

Dimensions

Depth
10 Inch
Height
24 Inch
Length
28.8 Inch
Width
20 in
Features
  • Window pre-mounted in door of enclosure.
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hidden hinges promote clean aesthetic appearance
  • Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Quarter-turn latches furnished with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wallmounting hole
  • Installation instructions
  • Clear polycarbonate window
