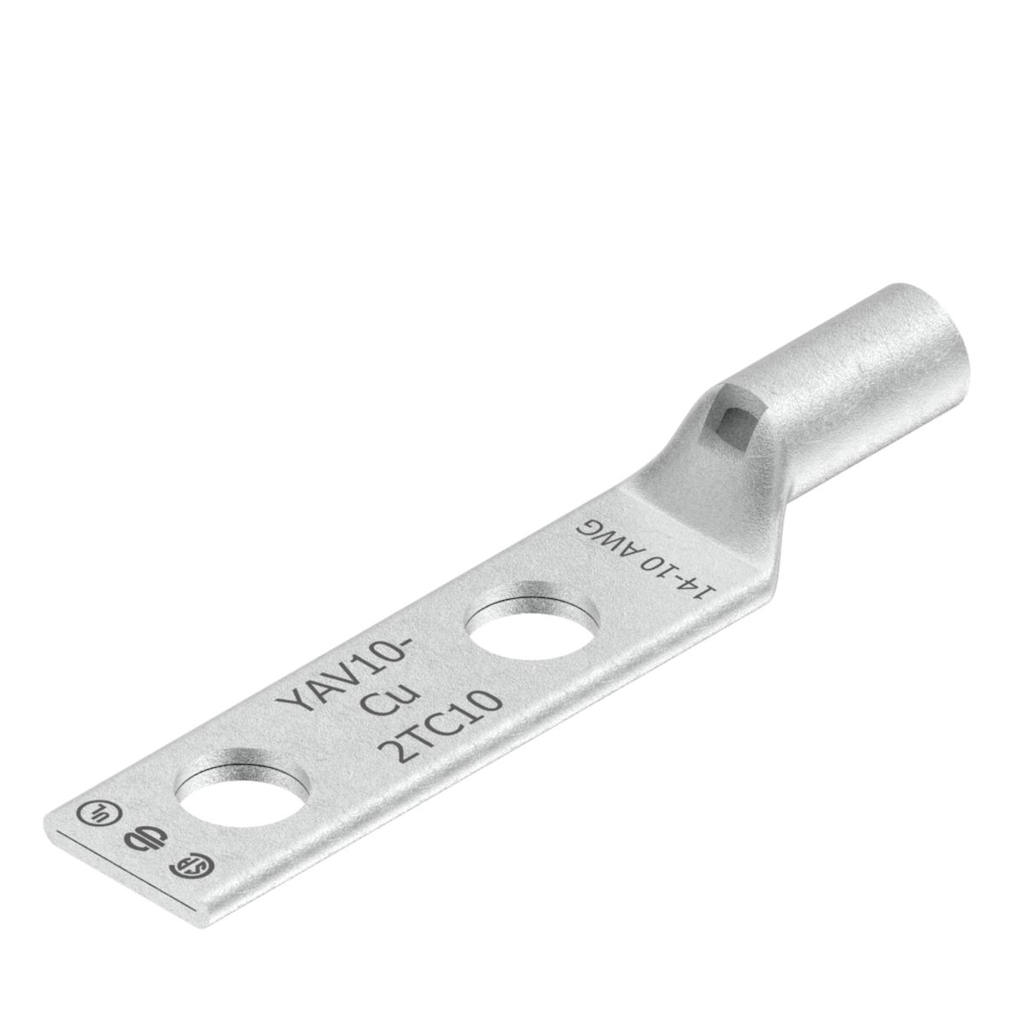

Product image for Burndy YAV102TC10 Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), #10 Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated
Image thumbnail 0
Image thumbnail 1
Email

Burndy YAV102TC10 Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), #10 Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated

Manufacturer: Burndy | Catalog # YAV102TC10 | North Coast Part # 53472
$12.00/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), #10 Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated.

Technical Information

Applications
For Code Conductor
Cable Size
14 - 10 AWG Stranded, 12 - 10 AWG Solid, 6 SQ-MM For Class 2 Conductor
Conductor Material
Copper
Conductor Size
10 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.164-0.19 in
Type
Standard Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810021835
Finish
Tin Plated
GTiN
00781810021835
Product UPC
78181002183

Dimensions

Height
0.21 Inch
Hole Size
5 mm
Length
1.72 Inch
Overall Length
1.72 in
Width
0.36 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Conductor Type: Commercial Stranded Copper, Die Index: 2 SCRIBE, Wire Strip Length: 7/16 IN
