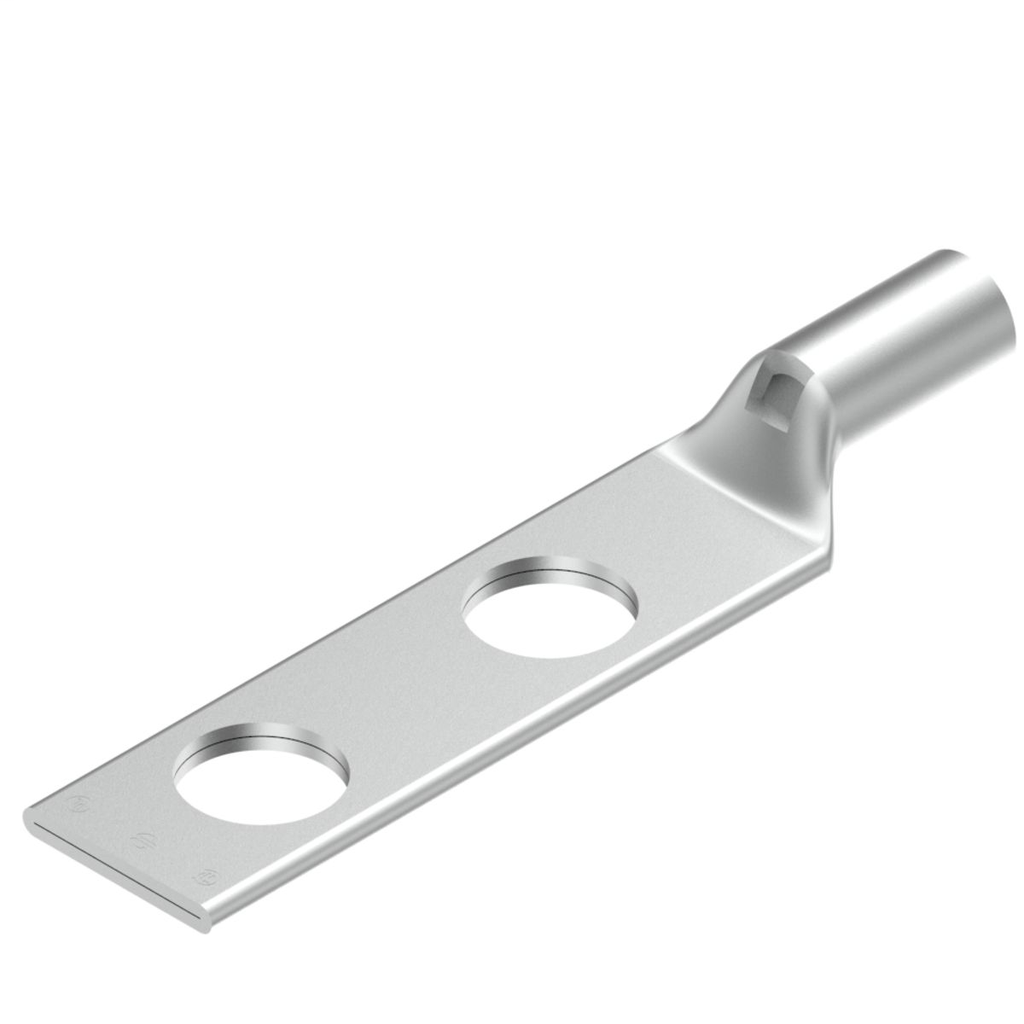

Product image for Burndy YAV102TC14 Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated
Image thumbnail 0
Image thumbnail 1
Email

Burndy YAV102TC14 Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated

Manufacturer: Burndy | Catalog # YAV102TC14 | North Coast Part # 53524
$7.91/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Copper Compression Lug, 2 Hole w/ Inspection Window, 14 AWG -10 AWG (str)/ 12 AWG-10 AWG (sol), 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin - Electro Plated.

Technical Information

Applications
For Code Conductor
Barrel Type
Standard, Short
Cable Size
14 - 10 AWG Stranded, 12 - 10 AWG Solid, 6 SQ-MM For Class 2 Conductor
Conductor Material
Copper
Conductor Size
14-10 AWG Stranded, 12-10 AWG Solid
Connection Type
Terminal
Die Code
2
Material
Copper
Max Voltage
35000 V
Mounting Type
7 mm Hole
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Strip Length
7/16 in
Stud Size
1/4 in
Temperature Rating
90 degrees C
Type
Standard Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810021842
Finish
Tin Plated
GTiN
00781810021842
Product UPC
78181002184

Dimensions

Height
0.21 Inch
Hole Size
7 mm
Length
1.84 Inch
Overall Length
1.84 in
Width
0.41 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Conductor Type: Commercial Stranded Copper, Die Index: 2 SCRIBE, Wire Strip Length: 7/16 IN
