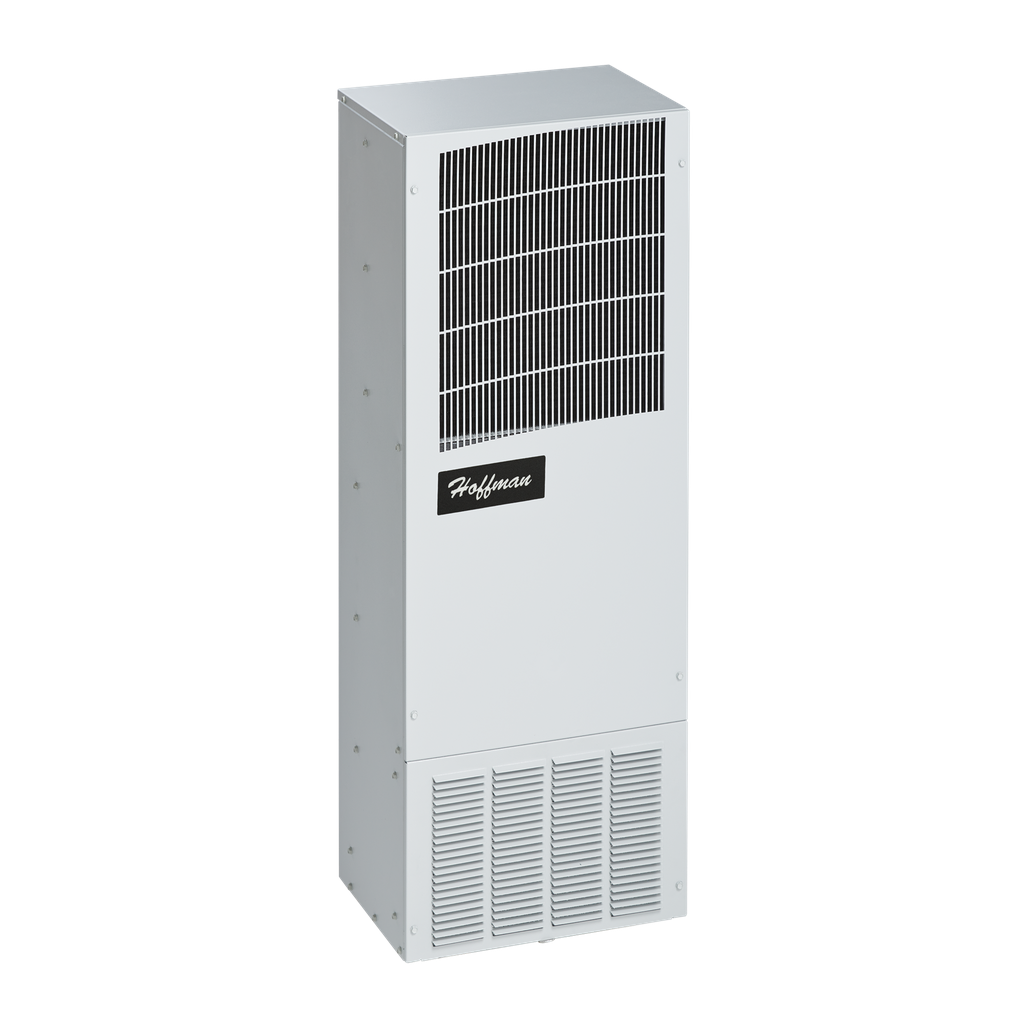

Product image for Hoffman T430826G100 T-SERIES Mid-Size Outdoor, Side Mtg 230v 50/60Hz, Type 4
Email

Hoffman T430826G100 T-SERIES Mid-Size Outdoor, Side Mtg 230v 50/60Hz, Type 4

Manufacturer: nVent Hoffman | Catalog # T430826G100 | North Coast Part # 536699
$8,169.94/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet MDM Safety Data Sheet
T-Series Mid-Size Air Conditioners keep equipment cool at a range of heat loads. Their discreet design helps them to blend into blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.

Technical Information

Amperage
5.2/5.4 Amp
Applications
Controls and Drives; Power Distribution
BTU Hour
8200 BTU
Color Coding
RAL 7035
Frequency
50/60 Hz
Material
Steel
Max Current
5.4 A
Max Power Current
2400 W
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Number of Phases
1 Phase
Operating Temperature
131 degrees F
Standard
3R Or 4 Rated Enclosure.,3R Or 4 Rating When Properly Installed On UL/cUL Type 12,3R Or 4X Rated En,3R Or 4X Rating When Properly Installed On UL/cUL Type 12,Galvanized Versions Maintain UL/cUL Type 12,Stainless Steel Versions Maintain UL/cUL Type 12
Type
Air Conditioners
Voltage
230
Wattage
2403 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
T-Series

General Product Info

12-Digit UPC
783510163037
Color
Lt Gray
Finish
Powder Coated
GTiN
00783510163037
Housing Material
Mild Steel
Product UPC
78351016303
Weight
131 lb

Dimensions

Depth
10.9 Inch
Height
43 Inch
Length
20-3/4 Inch
Thickness
1.21 mm
Width
13.75 in
Features
  • Compact footprint to minimize real estate and maximize capacity
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R134A or R-407C refrigerant
  • Models for 115, 230 and 460 VAC power input
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Exterior and fully recessed mounting options on many models
  • Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
  • Mounting hardware, gaskets and user manual furnished with the unit
