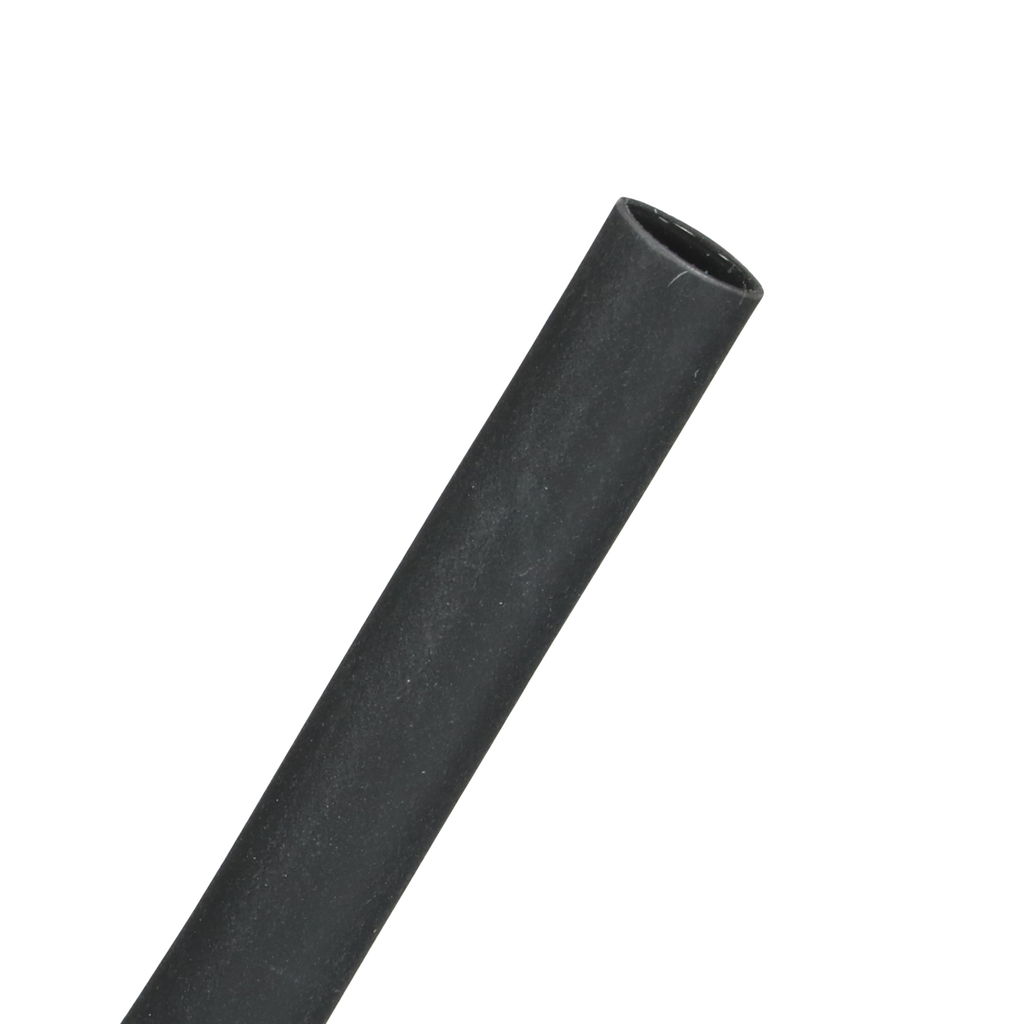

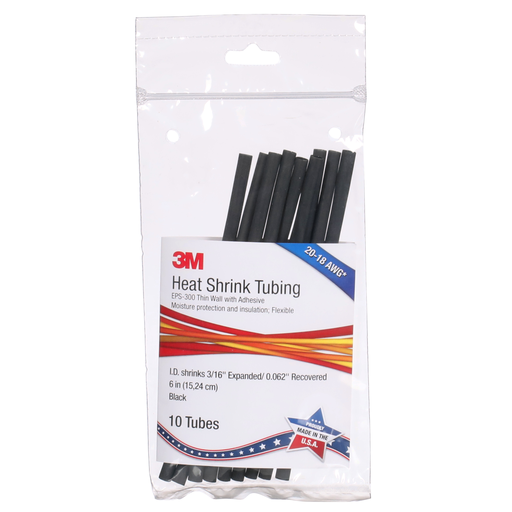

3M 7010350254 3M™ Thin-Wall Heat Sh

Manufacturer: 3M | Catalog # 7010350254 | North Coast Part # 53805

$38.84/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
3M™ Heat Shrink Products offer the important advantages of simple installation, excellent performance, and long-term reliability. The materials chosen for these products are specifically developed to meet demanding performance requirements and are manufactured under stringent quality-assurance standards, with many products meeting or exceeding the requirements of most military, commercial, and industrial OEM specifications. Various 3M™ Heat Shrink Products have proven their effectiveness in some of the most demanding environments, including outer space, undersea, and underground. Count on a wide range of high-quality heat shrink tubing products from 3M for insulating, protecting, bundling, harnessing, and wire marking.

Technical Information

Dielectric Strength
700 V/mil
Flame Retardant
Yes
Material
Polyolefin
Max Operating Temperature
110.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3 to 1
Size
0.187 in
Type
Dual Wall (Adhesive Lined)

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128600672
Color
Black
GTiN
00051128600672
Product UPC
05112860067

Dimensions

Inside Diameter
0.062
Length
6 Inch
Outside Diameter
0.187 in
Overall Length
6.0 in
Thickness
0.04

Certifications and Compliance

Country of Origin
USA
Features
  • SHRINK RATIO: Offers a 3:1 shrink ratio; when freely recovered, the tubing will shrink 33% of its as-supplied diameter
  • DUAL-WALL DESIGN: A durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
  • A VERSATILE OPTION: Flame-retardant, water-resistant, and rated for 600 V applications
  • OPERATING RANGE: This tubing functions in a temperature range of -55110 C (-67230 F), with a shrinking temperature minimum of 121 C (250 F)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Offers protection for automotive, truck, electronic components, wire splices, wire bundles, and harness breakouts
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
