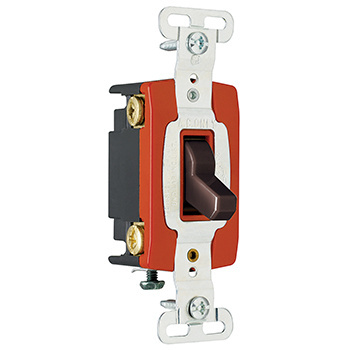

Pass & Seymour PS20AC4 20 Amp 120/277 VAC 4-Way Brown Glass Reinforced Nylon Screw Mounting Toggle Switch

Manufacturer: Legrand / Pass & Seymour | Catalog # PS20AC4 | North Coast Part # 544271

$17.52/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
4way Toggle Switch, Back & Side Wire, 20amp 120/277volt, Ivory

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
Industrial
Blade Dimensions
3.3 in
Contact Rating
20amp, 120/277vac
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
2 Pole
Size
3.3"
Type
4-Way
Voltage
120 Volt
Wattage
4 Watt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Brown
GTiN
00785007195453
Product UPC
78500719545
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.320 in

Certifications and Compliance

Certifications
CSA,FEDSPEC,UL
Country of Origin
Mexico
Certifications
  • Federal Spec Listed
  • CSA Listed
  • Strap nickel-plated steel with integral ground.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Shallow design for ease of istallation.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Auto-ground clip assures positive ground.
  • Grounding terminal is standard.
  • High strength thermoplastic polycarbonate toggle.
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • For covering patents, see www.legrand.us/patents.
  • Locking support provides resistance to face and back body separation.
  • Back body made of glass-reinforced nylon.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Heavy-duty bumper pads for quiet operation.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
