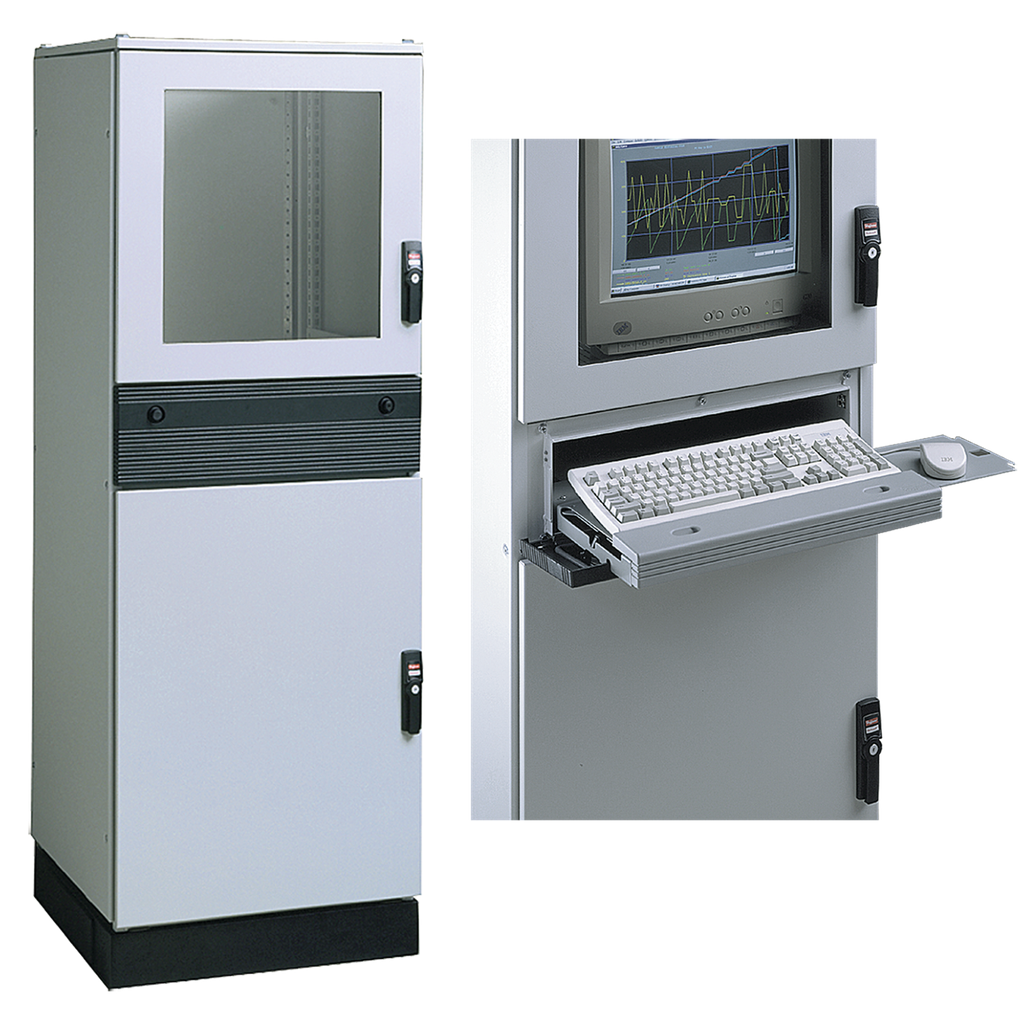

Hoffman PPC1686 PROLINE-PC, Type 12, 1600x 800x 600mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PPC1686 | North Coast Part # 545175
$11,510.58/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine-PC Modular Enclosures are ideal for applications that require housing standard PCs and keyboards. A modular system, these enclosures provide multiple configuration possibilities.simply add components to the frame to create a single enclosure, or gang multiple enclosures for larger or more complex applications.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
1600x800x600mm
Standard
CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed,VDE IP55
Type
Mild Steel Modular Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510988104
Color
Light Gray
Finish
Powder Coated
GTiN
00783510988104
Product UPC
78351098810
Weight
337 lb

Dimensions

Depth
23.62 Inch
Height
62.99 Inch
Length
32 Inch
Thickness
1.52 mm
Width
31.5 in
Features
  • Frame is enclosed with solid sides, a solid top and a 100-mm solid base.
  • Three doors, two in front and one in back, provide convenient access
  • Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
  • The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
  • The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
  • The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
  • The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
  • The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock; compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems
