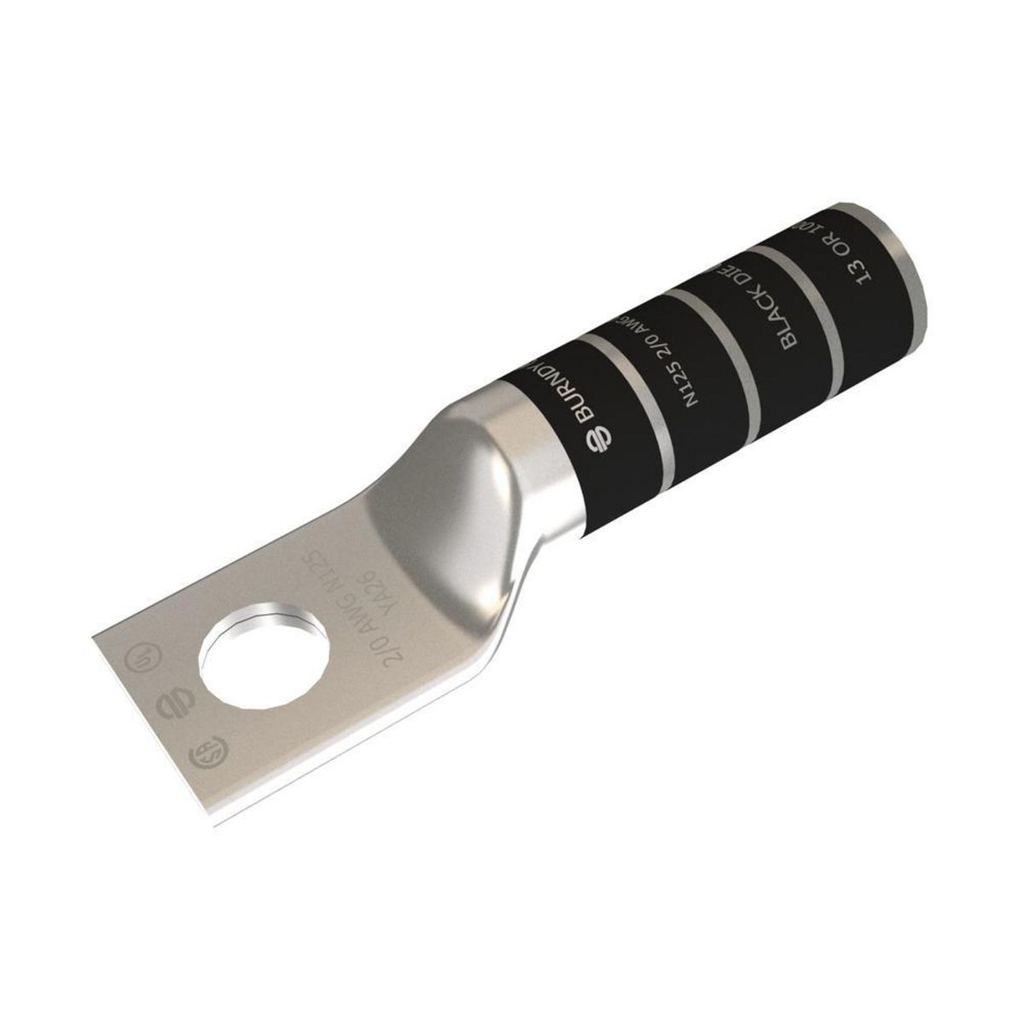

BUR YA26N 2/0 CU 1-HOLE LONG NEMA

Manufacturer: Burndy | Catalog # YA26N | North Coast Part # 547339
$10.25/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
42 available

For Delivery

Order by Sunday 4:00pm PT for delivery Monday
Out of stock, call for availability
Specification Sheet
2/0 AWG CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV,BLACK Color Code, 13 Die Index.

Technical Information

Applications
For Code Conductor
Barrel Type
Long, Straight
Cable Size
2/0 AWG, 70 SQ-MM For Class 2 Conductor
Color Coding
Black
Conductor Material
Copper
Conductor Size
2/0 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
1/2 in
Temperature Rating
90 C
Type
YA, Uninsulated

Manufacturer Information

Family Brand Name
Burndy
Sub Brand
Hylug

General Product Info

Finish
Tin Plated
GTiN
00781810018897
Product UPC
78181001889
Used With
Code Conductor

Dimensions

Height
0.56 Inch
Hole Size
14 mm
Length
3.21 in
Overall Length
3.21 in
Width
0.83 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
