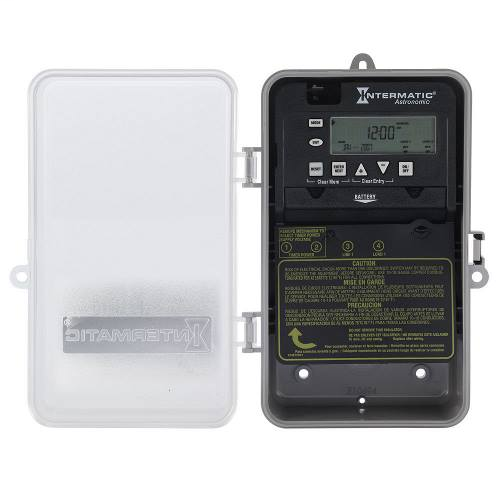

Product image for Intermatic ET8015CPD82 24/7 Electronic Astronomic Time Switch, 1-Circuit, SPST, 120-277V 30A, Type-3R Plastic
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

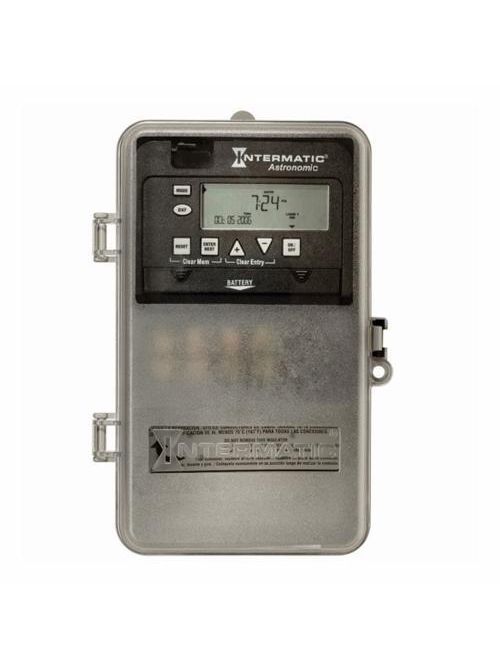

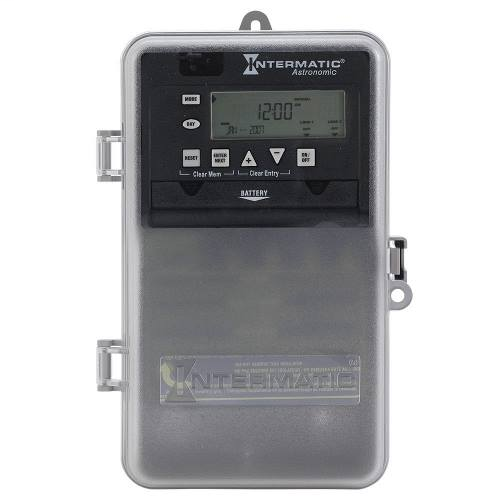

Intermatic ET8015CPD82 24/7 Electronic Astronomic Time Switch, 1-Circuit, SPST, 120-277V 30A, Type-3R Plastic

Manufacturer: Intermatic | Catalog # ET8015CPD82 | North Coast Part # 547466
$533.30/ea
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, 14 ON/OFF events per circuit, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day, and 7-day astronomic (sunrise to sunset) versions.

Technical Information

Action
SPST
Amperage
30 Amp
Applications
Outdoor, HVACR, Industrial
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Rating
30 AMP @ 120/240 VAC (Resistive NO), 20 AMP @ 28 VDC (Resistive NO), 30 AMP @ 120/240 VAC (Inductive NO), 5 AMP @ 120/240 VAC (Tungsten NO), 20 AMP @ 120 - 277 VAC (Ballast NO)
Enclosure
NEMA 3R Plastic
Enclosure Type
Outdoor Type 3R Plastic
Frequency
50/60 Hz
Horsepower
1 hp
Input Voltage
208-277 V
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
155 degrees F
Standard
CCSAus Certified,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPST
TC Connection
Teeter Type
Type
Astronomic Electronic
Voltage
120-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275109810
GTiN
00078275109810
Product UPC
07827510981

Dimensions

Depth
101.6 mm
Height
254 mm
Width
165.1 mm
Features
  • Selector switch to determine input voltage between 120-277 VAC, 50/60 Hz
  • 14 ON/OFF events per circuit
  • To-the-minute accuracy
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Astronomic models enable dusk-to-dawn scheduling
Applications
  • Interior Lighting
  • Exterior Lighting
  • Electric Pumps
  • Electric Motor Control
  • Various Other Electrical Loads
Related Accessories and Parts
  • ET8015CM
