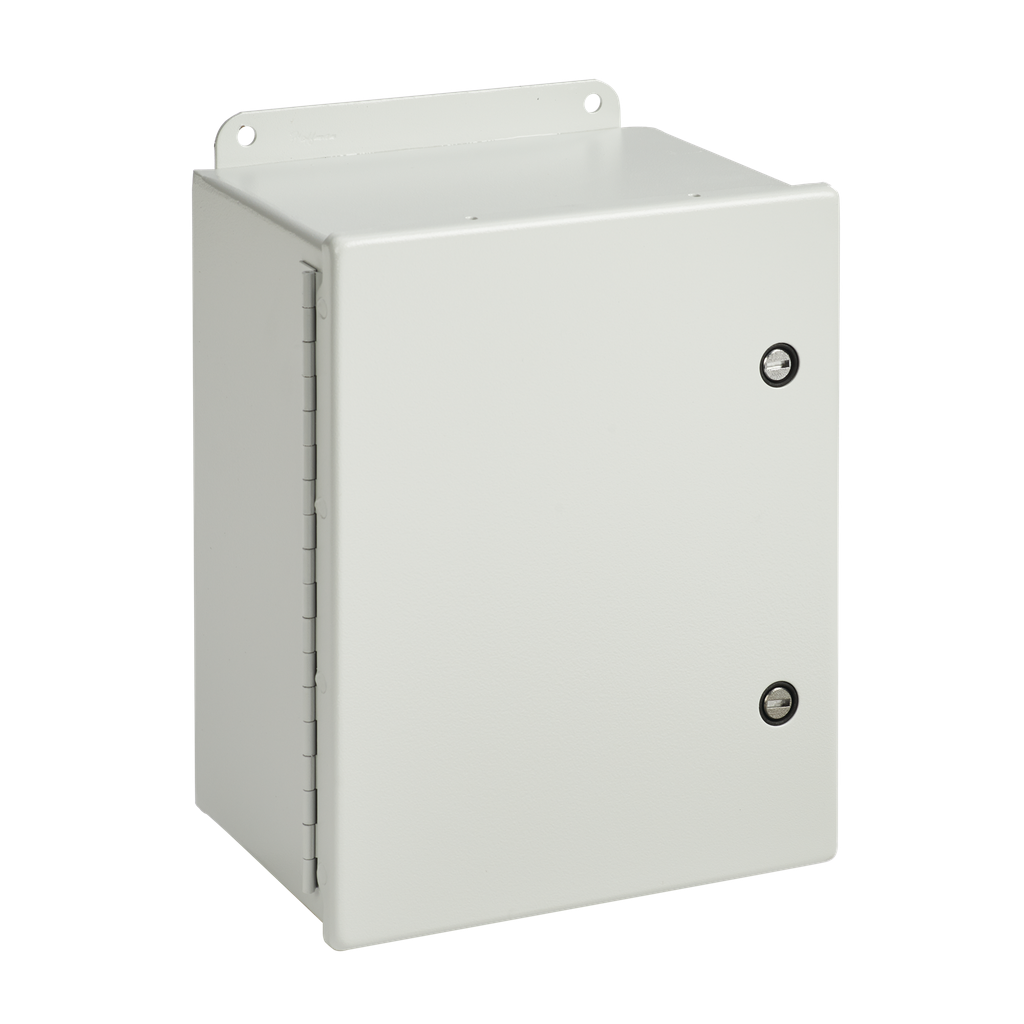

Product image for Hoffman A10086CHFL Continuous Hinge with Quarter-Turn Latch, Type 4, 10" x 8" x 6", Gray, Steel
Email

Hoffman A10086CHFL Continuous Hinge with Quarter-Turn Latch, Type 4, 10" x 8" x 6", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A10086CHFL | North Coast Part # 547836
$292.98/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Friday 5:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
This enclosure provides the convenience of quarter-turn latching with an aesthetic, easy-to-maintain light gray textured finish.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Cover Type
Continuous Hinged with Quarter-Turn Fast Latch
Gauge
14 and 16
Material
Steel
Mounting Type
Wall
Number of Latches
2
Size
10.00x8.00x6.00 in
Standard
CUL Listed Per CSA C22.2 No. 94 Listed; Type 4, 12; File No. E61997,IEC 60529, IP 66,NEMA/EEMAC Type 4 And 12,UL 508A Listed; Type 4, 12; File No. E61997
Type
Two Lock, Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510148829
Color
7035 Light Gray
Finish
Powder Coated
GTiN
00783510148829
Product UPC
78351014882
Weight
9.1 lb

Dimensions

Depth
152 mm
Height
254 mm
Length
10.2 Inch
Thickness
1.9 mm
Width
203 mm
Features
  • Seams continuously welded and ground smooth
  • Continuous hinge
  • Bonding provision on door
  • External welded-on mounting brackets for easy installation
  • Oil-resistant gasket
  • Quarter-turn slotted latches
  • Seamless foam-in-place gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
