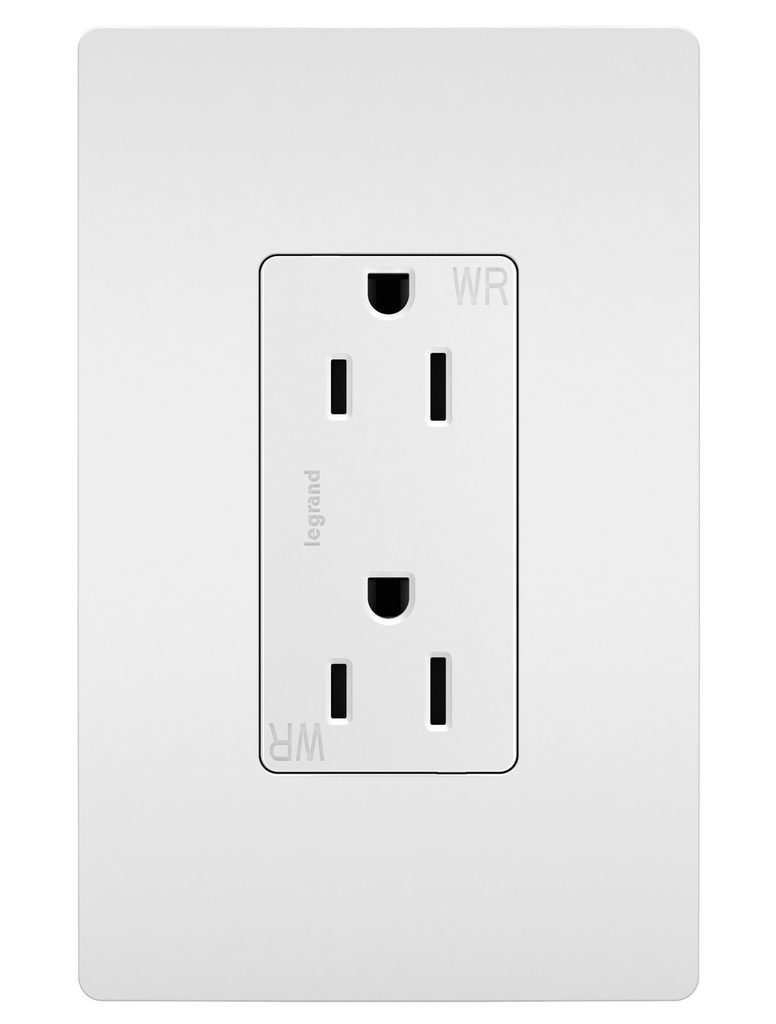

Pass & Seymour 885-TRWRW 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Thermoplastic Duplex Decorator Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # 885TRWRW | North Coast Part # 548633

$5.08/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch
Take a step up from the standard, even outside. This weather-resistant* outlet installs easily to bring power to your patio, pool area, porch or deck, while elevating your outdoor space with the sleek, clean lines of radiant® for a sophisticated look. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
Residential/Commercial
Material
Thermoplastic
Number of Gangs
2 Gang
Number of Poles
2 Pole
Number of Wires
3
Orientation
Vertical
Size
4.25"
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
White
GTiN
00785007241792
Product UPC
78500724179
UNSPSC
39121704

Dimensions

Depth
1 Inch
Height
3.31 Inch
Thickness
1.3"
Width
1.29 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • High-impact resistant thermoplastic construction.
  • Side wire accepts #12 : #14 AWG solid wire.
  • Push wire accepts #14 AWG solid only. Low profile face.
  • For covering patents, see www.legrand.us/patents.
  • Safer and more effective than plastic outlet caps.
  • WR markings on face per UL Weather-Resistant requirements.
  • Listed to the Weather-Resistant supplement of UL498, meeting demanding UL requirements including: Ultraviolet light exposure test: Cold impact test: Accelerated aging test: Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
  • Residential Weather-Resistant Receptacles are Tamper-Resistant as required by National Electrical Code.
  • TR markings identify devices as Tamper-Resistant.
  • Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.
  • Traditional contoured face.
Certifications
  • cULus Listed
