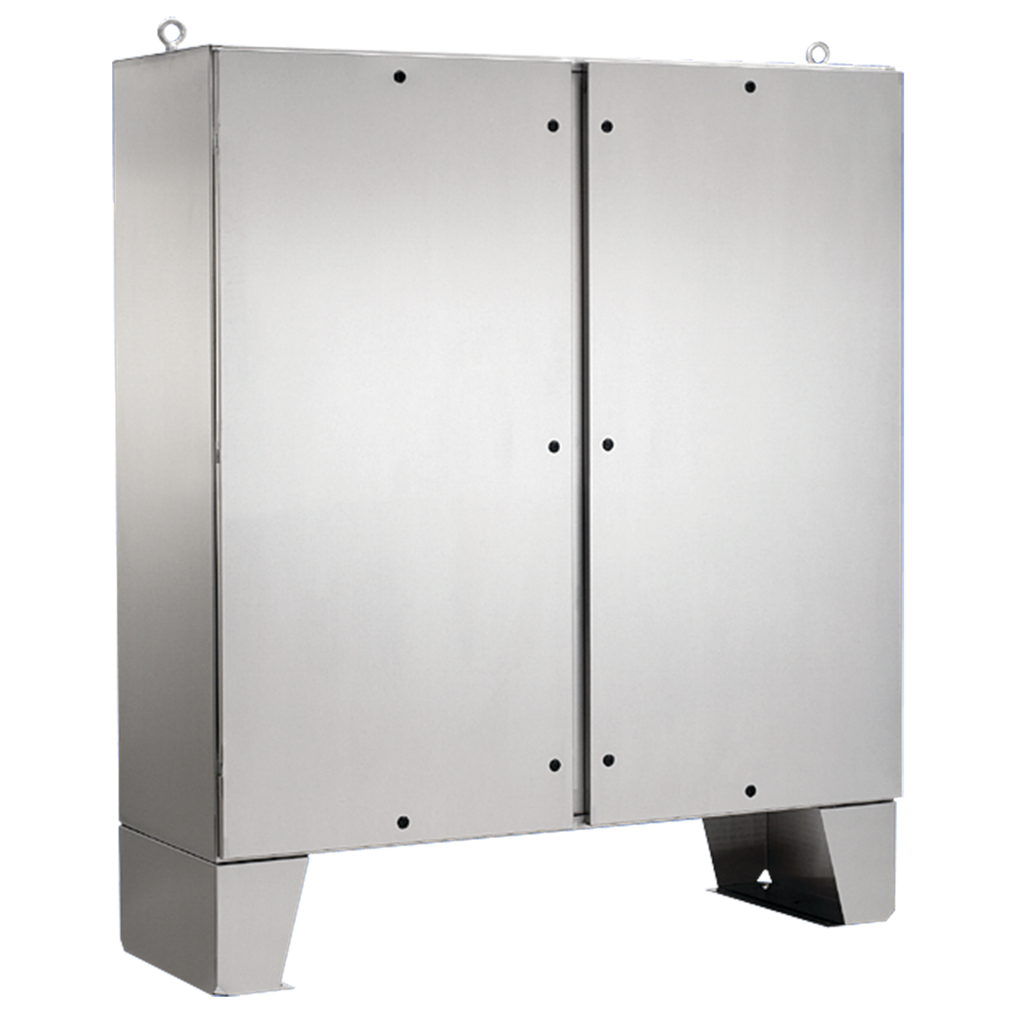

Product image for Hoffman A60H6018SSLPQT General Purpose Two-Door with Quarter-Turn Latches and Floor Stands, Type 4X, 60.06" x 60.06" x 18.06", SS Type 304
Email

Hoffman A60H6018SSLPQT General Purpose Two-Door with Quarter-Turn Latches and Floor Stands, Type 4X, 60.06" x 60.06" x 18.06", SS Type 304

Manufacturer: nVent Hoffman | Catalog # A60H6018SSLPQT | North Coast Part # 550727
$19,339.73/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
This two-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries.

Technical Information

Applications
Controls and Drives; Corrosive Environments; Hygienic Environments
Body Thickness
2.8 mm
IP Rating
66
Material
Stainless Steel
Number of Latches
10
Size
60.06x60.06x18.06 in
Standard
CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC: Type 3R, 4, 4X, 12,Number E61997,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510137182
Color
Unpainted
Finish
Brushed
GTiN
00783510137182
Product UPC
78351013718
Weight
473 lb

Dimensions

Depth
18.06 Inch
Height
60.06 Inch
Length
68 Inch
Width
38.00 in
Features
  • Floor-standing enclosure with 1/4 turn latching
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Black die-cast quarter-turn latches with slotted insert provided on three sides of each door
  • Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Bolt-on 12-in.-high stainless steel floor stands
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Collar studs on inside of enclosure back for mounting optional panels
  • Removable centerpost for easy panel installation
  • Bonding provisions on doors; grounding studs on body
  • Data pocket is high-impact plastic attached with pressure-sensitive adhesive
  • No interior stiffeners to obstruct component mounting
  • Accessory mounting channel provided in enclosure top
