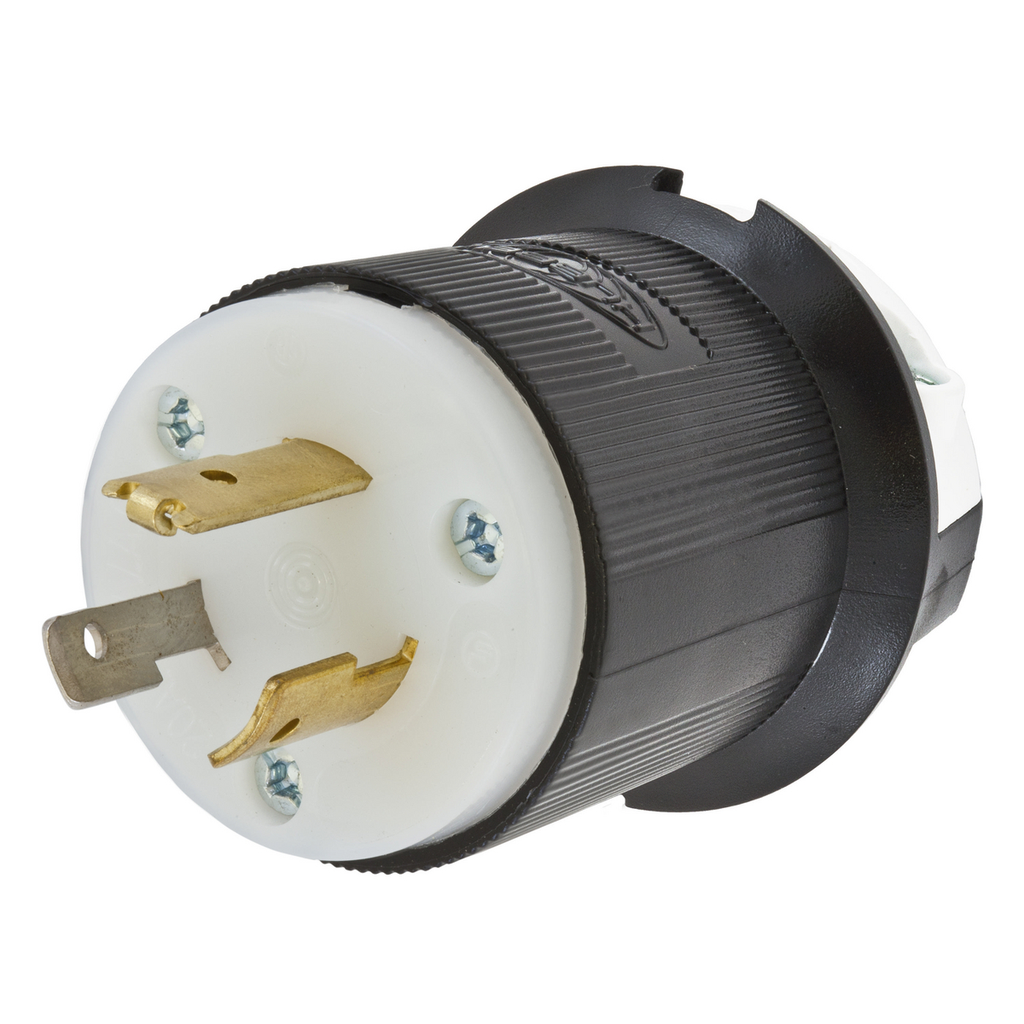

Product image for Hubbell HBL3721 20 Amp 347 VAC 2-Pole 3-Wire NEMA L24-20P Black/White Nylon Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL3721 20 Amp 347 VAC 2-Pole 3-Wire NEMA L24-20P Black/White Nylon Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL3721 | North Coast Part # 551424
$56.63/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Plug, 20A 347V AC, 2-Pole 3-Wire Grounding, L24-20P, Screw Terminal, Black and White.

Technical Information

Amperage
20 Amp
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
12-10 AWG
Cord Size
0.36 - 0.93 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Material
Nylon
Mounting Type
Cord
NEMA

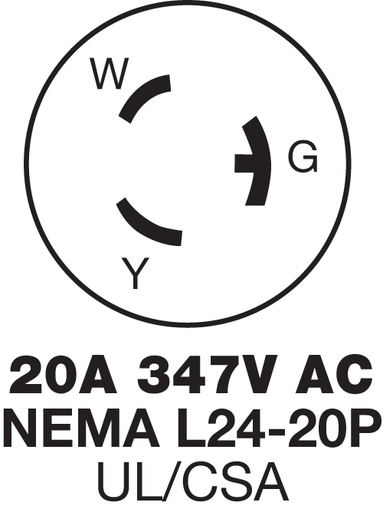

L24-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

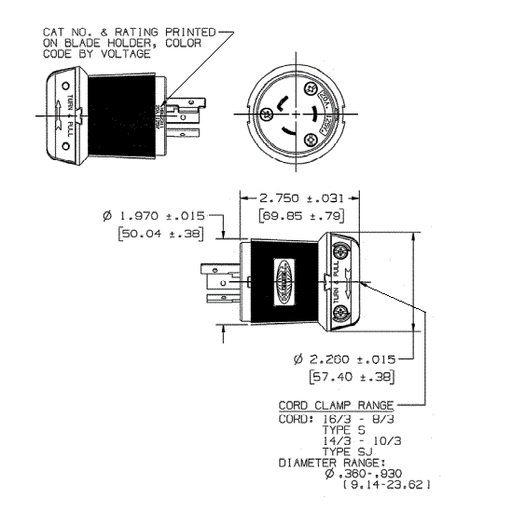

2.75 in x 2.26 in x 2.26 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard
Voltage
347 Volt
Wattage
6940 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585046594
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
GTiN
00783585046594
Product UPC
78358504659
Weight
0.3 lb

Dimensions

Height
2.26 Inch
Length
2-3/4 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
