P&S 5262LASP TVSS RECP 15A 125V ALA

Manufacturer: Legrand / Pass & Seymour | Catalog # 5262LASP | North Coast Part # 552661

$59.08/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days

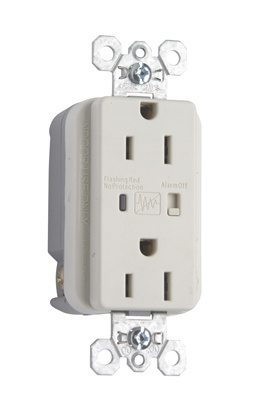

Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 15amp 125volt, Gray.

Technical Information

Amperage
15 Amp
Applications
Commercial
Blade Dimensions
1.7 in L x 1.25 in W x 3.75 in H
Conductor Size
14 - 10 AWG
Connection Type
Back and Side Wired
Duty Rating
Extra Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall
Number of Poles
2 Pole
Number of Wires
3
Size
1.70 L x 1.25 W x 3.75 H In
TC Connection
Back and side wire
Temperature Rating
Operating Temperature: -20C to +55C (-4F to 131F), Storage Temperature: -40C to +85C (-40F to 185F)
Type
TVSS
Voltage
125 Volt
Wattage
Electrical power is expressed in Amps and Volts.
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Light Almond
GTiN
00785007193404
Product UPC
78500719340
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
3.82 Inch
Width
1.750 in

Certifications and Compliance

Buy American Compliant
No
Certifications
CULUS
Country of Origin
Mexico
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
