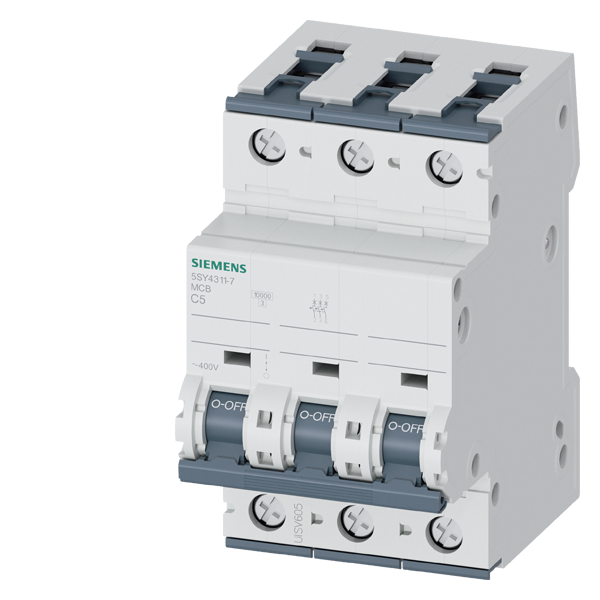

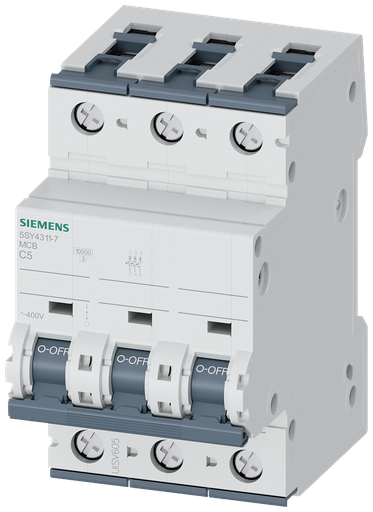

Siemens 5SY43117 5SY4 MCB, 3P,48

Manufacturer: Siemens | Catalog # 5SY4311-7 | North Coast Part # 553600
$152.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY4 Miniature Circuit Breaker, 3 Poles, 480/277V, 5A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
5 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
5 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
3 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
CSA 22.2 NO. 235,UL 1077,EN 60 898,EN 60 947-2,CE,IEC
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554889443
Class
C
GTiN
04001869309835
Product UPC
75455488944
Weight
0.950 lb

Dimensions

Height
3.3 Inch
Length
3-1/2 Inch
Width
2.500 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.041 kg
Green End-of-Life CO2
0.501 kg
Green Manufacturing CO2
1.599 kg
Green Total CO2
44.433 kg
Green Transport-to-DC CO2
0.365 kg
Green Use-Phase CO2
41.927 kg
