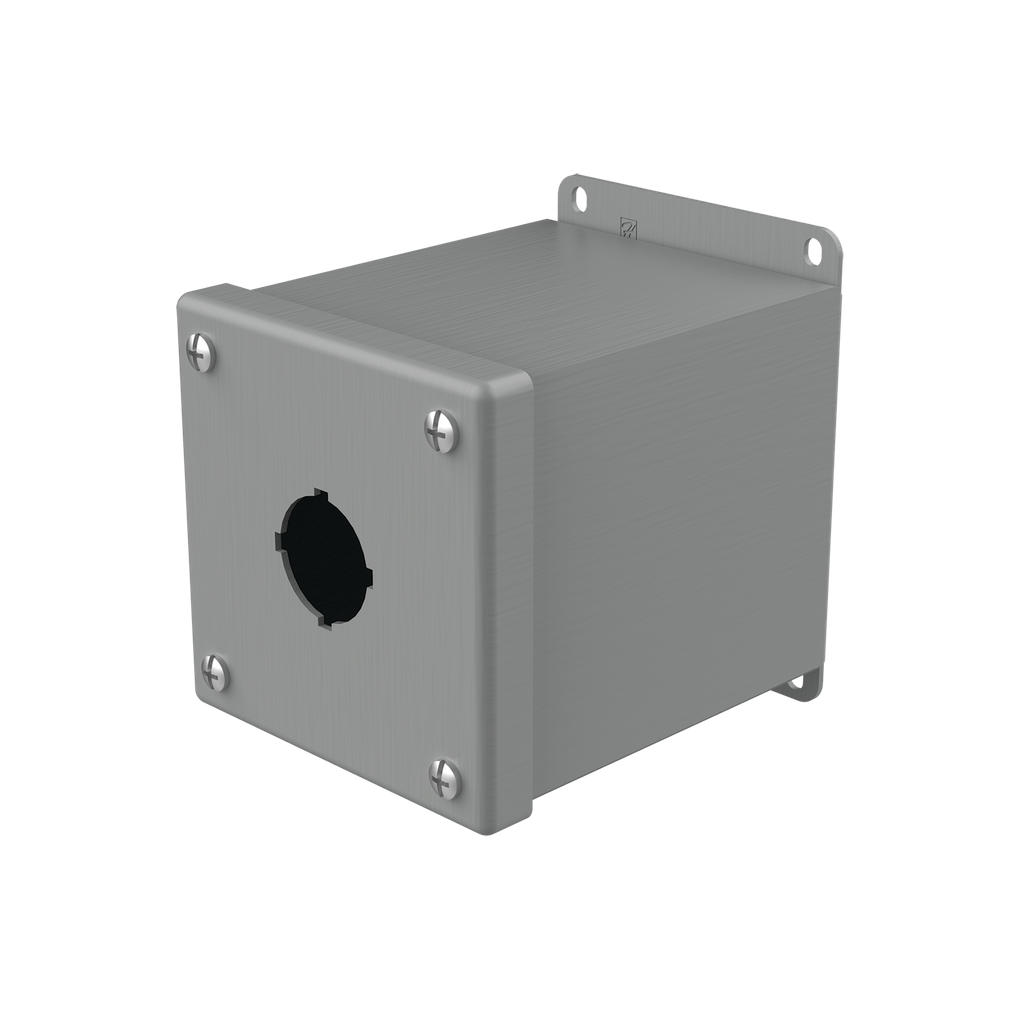

Product image for Hoffman E1PBX Extra-Deep Pushbutton Enclosures, Type 12, 1PB x 30.5mm, Gray, Steel
Email

Hoffman E1PBX Extra-Deep Pushbutton Enclosures, Type 12, 1PB x 30.5mm, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # E1PBX | North Coast Part # 5539
$180.33/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Extra-Deep Pushbutton Enclosures, Type 12, 1PB x 30.5mm, Gray, Steel

Technical Information

Applications
Designed to Hold 30.5 mm and 22.5 mm Pushbuttons and Switches, with Added Depth to Accommodate Additional Pushbutton Contact Blocks
Color Coding
ANSI 61
Cover Type
Screw
Gauge
14 and 16
Material
Steel
Number of Holes
1 Hole
Size
1PB x 30.5mm
Type
1 Hole

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510581206
Color
Gray
Finish
Powder Coated
GTiN
00783510581206
Product UPC
78351058120
Used With
30.5 mm and 22.5 mm Pushbuttons and Switches
Weight
2.2 lb

Dimensions

Depth
121 mm
Height
102 mm
Length
4.8 Inch
Thickness
1.52 mm
Width
102 mm
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
