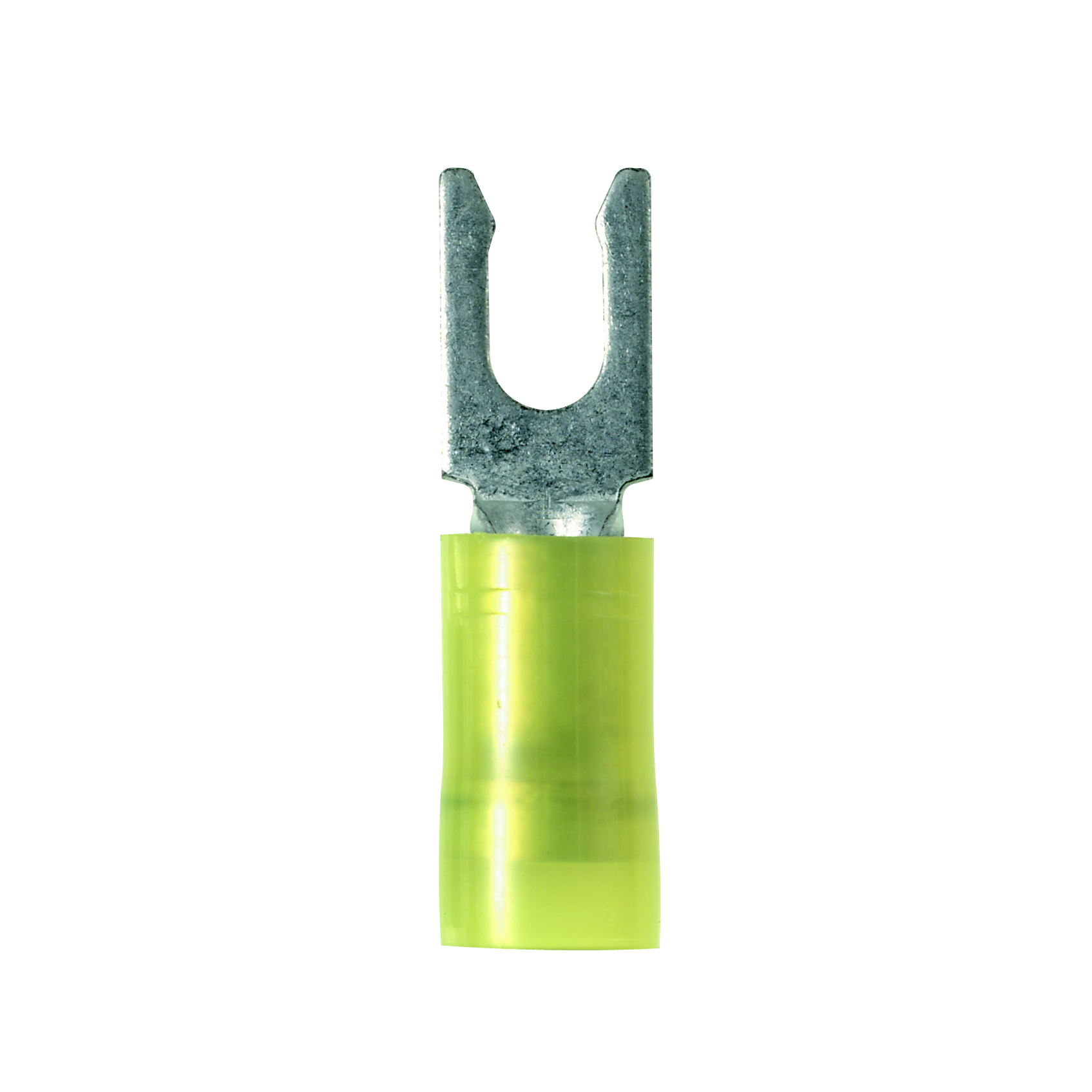

PAN PNF10-14LF-L Fork,Lock,Fnl,NYL,

Manufacturer: Panduit | Catalog # PNF10-14LF-L | North Coast Part # 554564

$163.48/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Out of stock, call for availability
Locking Fork Terminal, Funnel Entry, Nylon Insulated, 12 - 10 American Wire Gauge (AWG), 1/4 Inch Stud Size. Locks in place for secure connection. Fork design provides for fast and easy installation, without the need to remove fastener. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package.

Technical Information

Barrel Length
0.6 in
Barrel Type
Funnel
Color Coding
Yellow
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
221 degrees F
Size
NA
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Loose Piece Forks
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Pan-Term

General Product Info

Color
Yellow
Finish
Tin Plated
GTiN
00074983513697
Product UPC
07498351369
UNSPSC
39121409

Dimensions

Overall Length
1.19 in
Width
0.46 in

Certifications and Compliance

CA Prop65 Warning
No
Country of Origin
MX
