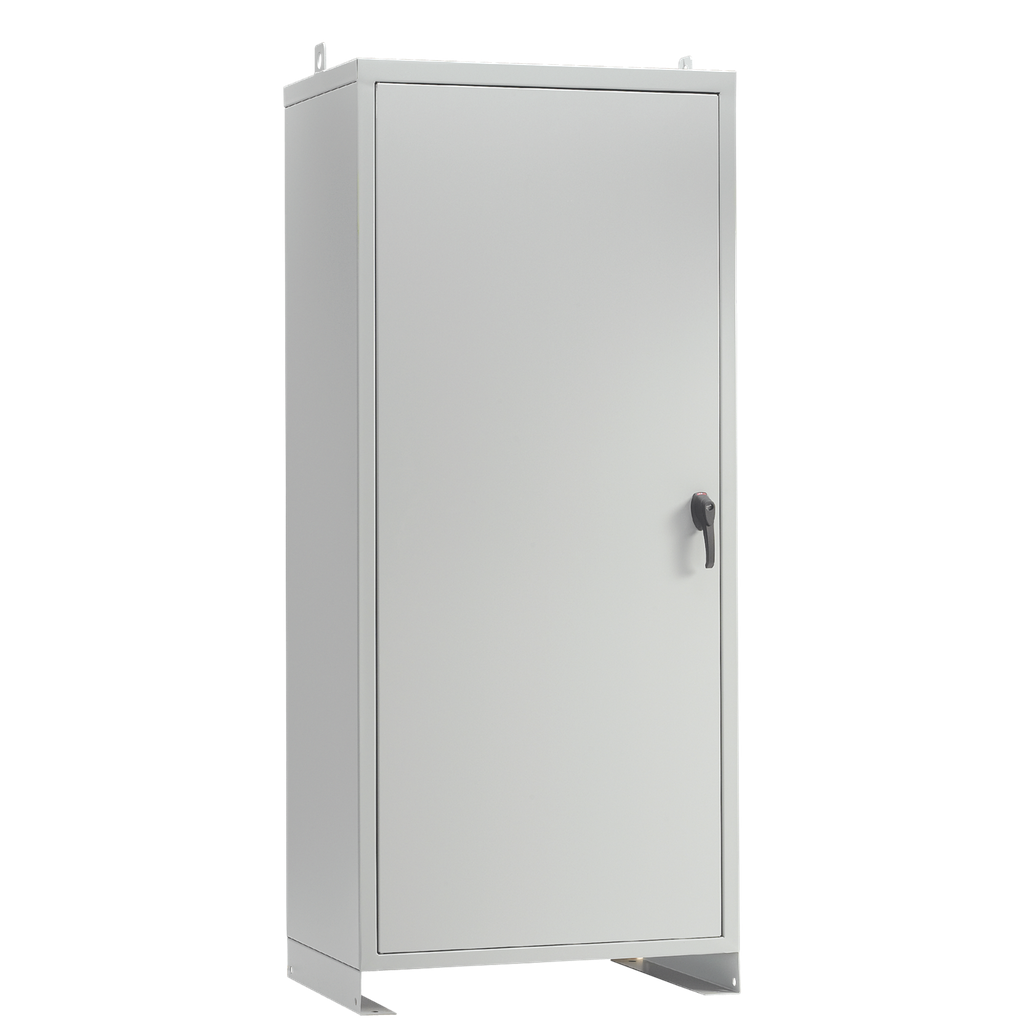

Product image for Hoffman A60N5212FSLP Free-Stand, Type 1, 60" x 52" x 12", Gray, Steel
Email

Hoffman A60N5212FSLP Free-Stand, Type 1, 60" x 52" x 12", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A60N5212FSLP | North Coast Part # 554566
$2,654.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Free-Stand Type 1 Enclosures are an economical way to protect equipment and employees in applications that do not require extensive environmental protection.

Technical Information

Applications
Controls and Drives, Power Distribution
Color Coding
RAL 7035
Cover Type
3-Point Latch
IP Rating
30
Material
Steel
Mounting Type
Wall
Size
60.00x52.00x12.00 in
Standard
CUL Listed Per CSA C22.2 No. 40,File No. E61997,IEC 60529 IP30,NEMA/EEMAC Type 1,Type 1,UL508A Listed
Type
Free-Stand, Double Door, Single Lock

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510138776
Color
Gray
Finish
Powder Coated
GTiN
00783510138776
Product UPC
78351013877
Weight
339 lb

Dimensions

Depth
305 mm
Height
1524 mm
Length
12 Inch
Thickness
1.9 mm
Width
1321 mm
Features
  • Enclosure back is 12 gauge for increased stiffness
  • 4-in. high 10 gauge steel integral lifting base
  • Heights from 48 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
  • Sturdy 7 gauge lifting tabs
  • Flush doors
  • 3-point latch with heavy-duty handle
  • Padlock provision in handle
  • Predrilled holes in lifting base provide bolt-down capability
  • Easily reversible doors on single-door models
  • Overlapping doors with no center post on two-door models
  • Bonding provision on each door
  • Studs included for mounting optional panels on threaded bolts
  • Optional rack angles mount to top and bottom of front flanges
  • Removable back covers
