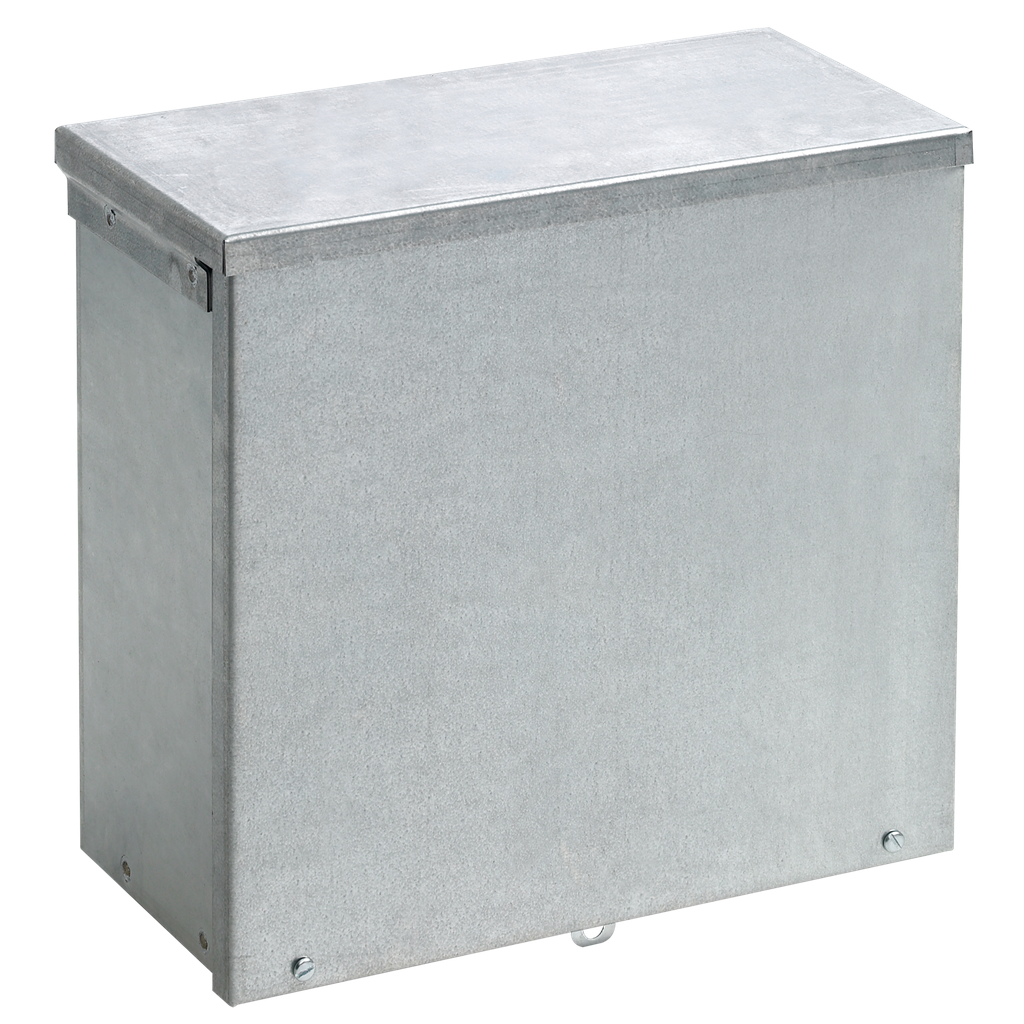

Product image for Hoffman A10R106GV Screw-Cover With Knockouts Type 3R, 10" x 10" x 6", Galvanized, Steel
Email

Hoffman A10R106GV Screw-Cover With Knockouts Type 3R, 10" x 10" x 6", Galvanized, Steel

Manufacturer: nVent Hoffman | Catalog # A10R106GV | North Coast Part # 554781
$97.52/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Galvanized Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water.

Technical Information

Applications
Power Distribution
Enclosure
3R
Material
Steel
Size
10.00x10.00x6.00 in
Standard
CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL50, 50E Listed; Type 3R; File No. E27525
Type
Pull and Junction Boxes

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510165451
Color
Unpainted
Finish
Galvanized
GTiN
00783510165451
Product UPC
78351016545
Weight
9 lb

Dimensions

Depth
6 Inch
Height
10 Inch
Length
10-1/4 Inch
Thickness
1.52 mm
Width
10 in
Features
  • Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
  • Slip-on removable cover fastened with plated steel screws along bottom edge
  • Door handles on larger sides (body style C; see table)
  • Embossed mounting holes on back of enclosure
  • See table for knockout pattern
  • Provision for padlocking
