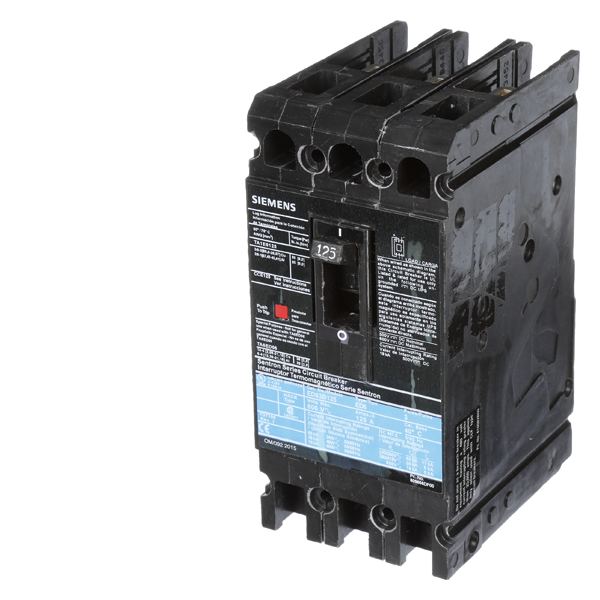

Product image for Siemens ED63B125L 3-Pole 125 Amp 600 VAC 18 kA Molded Case Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens ED63B125L 3-Pole 125 Amp 600 VAC 18 kA Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # ED63B125L | North Coast Part # 556171
$10,202.06/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). DIMENSIONS (W x H x D) IN: 3.00 x 6.4 x 3.92.

Technical Information

Actuator
Varying-In
Amperage
125 Amp
Applications
Standard 40C Breaker
Conductor Size
1-2/0 AWG (AL)/3-3/0 AWG (CU)
Connection Type
Line/Load Lugs Installed
Current
125 Amp
Enclosure
Varying
Frame
ED6
Frequency
50/60 Hz
Interrupt Rating
18 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
TC Connection
Line/Load lugs installed
Temperature Rating
40 degrees C
Trip Range
N/A
Trip Type
Thermal Magnetic
Type
ED6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643244658
GTiN
00783643244658
Product UPC
78364324465
Weight
4.010 lb

Dimensions

Height
5.55 Inch
Length
4.2 Inch
Width
7.450 in

Certifications and Compliance

Country of Origin
Mexico
