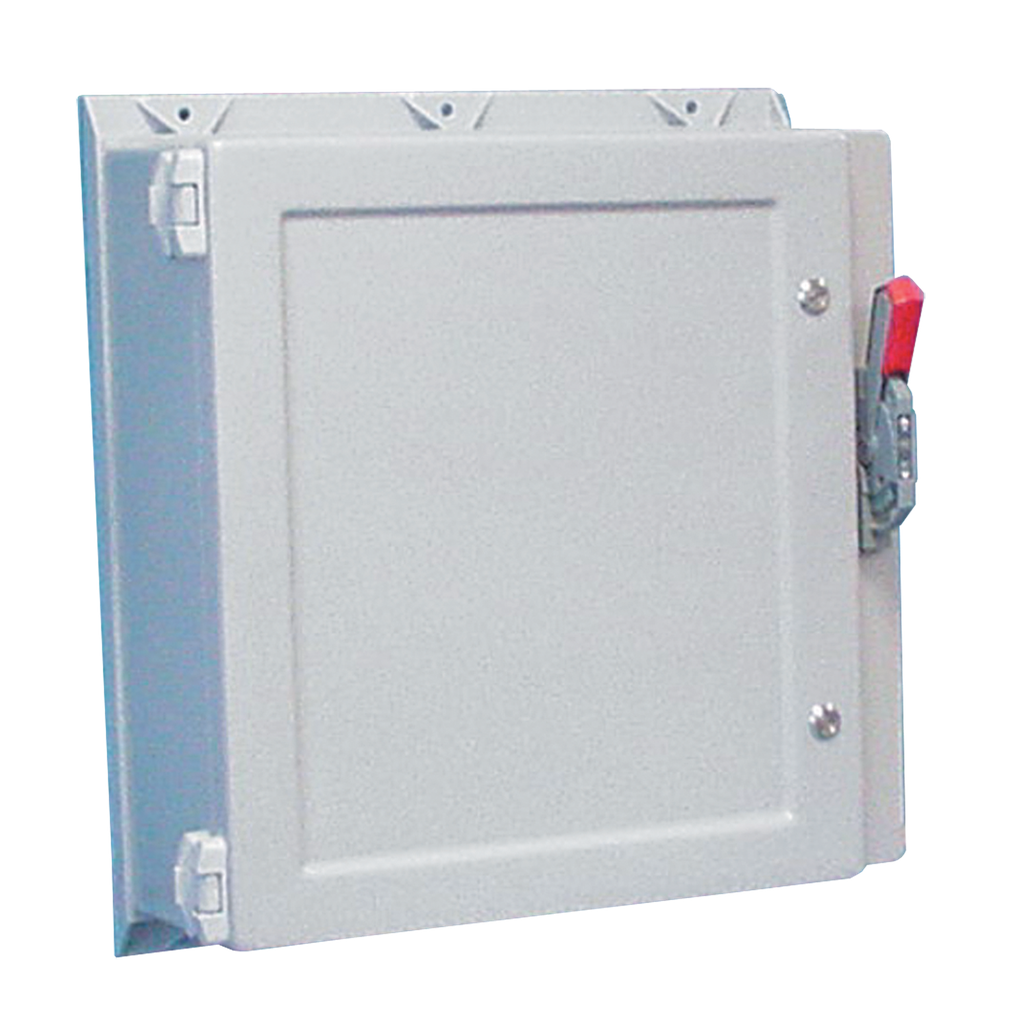

Product image for Hoffman A36HS3012GQRLP Fiberglass Disconnect, Type 4X, 36.25" x 30.25" x 12", Fiberglass
Email

Hoffman A36HS3012GQRLP Fiberglass Disconnect, Type 4X, 36.25" x 30.25" x 12", Fiberglass

Manufacturer: nVent Hoffman | Catalog # A36HS3012GQRLP | North Coast Part # 556174
$3,607.72/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
For effective and economical disconnect protection in the harshest corrosive environments, these enclosures provide secure door closure through the use of Type 304 stainless steel slotted quarter-turn latches. Each Fiberglass Disconnect, Type 4X is furnished with bracket affixed to door for attaching disconnect door catch (interlock) and instructions for installing disconnect handle (handle not included).

Technical Information

Applications
For Effective and Economical Disconnect Protection in the Harshest Corrosive Environments
Color Coding
RAL 7035
Cover Type
Standard Hinged, Quarter Turn Latch
Material
Fiberglass
Mounting Type
Wall
Number of Latches
4
Size
36.25x30.25x12.00 in
Standard
CUL Listed Per CSA C22.2 No. 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
Type
Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510132385
Color
Light Gray
Finish
Matte
GTiN
00783510132385
Product UPC
78351013238
Weight
58 lb

Dimensions

Depth
12 Inch
Height
36-1/4 Inch
Length
40-1/2 Inch
Thickness
0.12 in
Width
30-1/4 in
Features
  • Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Seams are sealed; no holes or knockouts
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Fiberglass material is easily drilled, filed or sawed
  • Hinges are fiberglass reinforced polyester
  • Doors are secured with Type 304 stainless steel slotted quarter-turn latches
  • Data pocket is high-impact thermoplastic
  • Copper flashed steel collar studs for mounting optional panels and terminal block kits
  • Holes provided in body for mounting disconnect operating handle and operating mechanism; disconnect operating handle not included
  • Internal grounding provisions for quarter-turn latches
