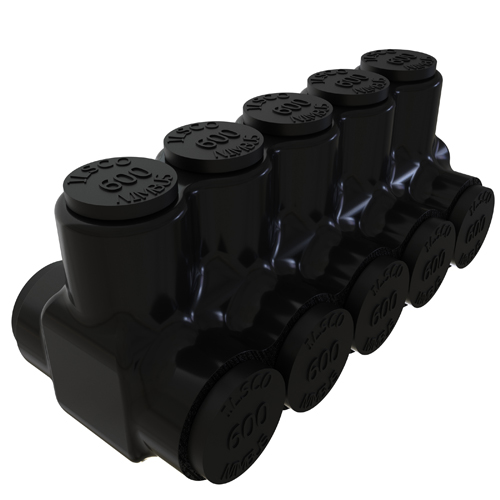

Product image for Ilsco PBTD-5-500 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 600-4, 5 Ports, Dual Sided Entry, Tin Plated, UL, CSA
Email

Ilsco PBTD-5-500 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 600-4, 5 Ports, Dual Sided Entry, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBTD-5-500 | North Coast Part # 557261
$217.24/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 4 Str, Contains DE-OX®, 5 conductors, 5 ports/wireways, Plastisol insulation, Drive Type Main 3/8 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
475 Amp
Applications
Insulated Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Size
600 kcmil - 4 AWG Stranded
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum/Copper/Plastisol
Number of Conductors
5
Number of Poles
1 Pole
Number of Ports
5
Standard
CSA,E2186,UL
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
2-Sided Entry, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669078466
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
GTiN
00783669078466
Product UPC
78366907846
Weight
1.666 lb

Dimensions

Height
3.034 Inch
Length
6.624 Inch
Width
3.031 in
