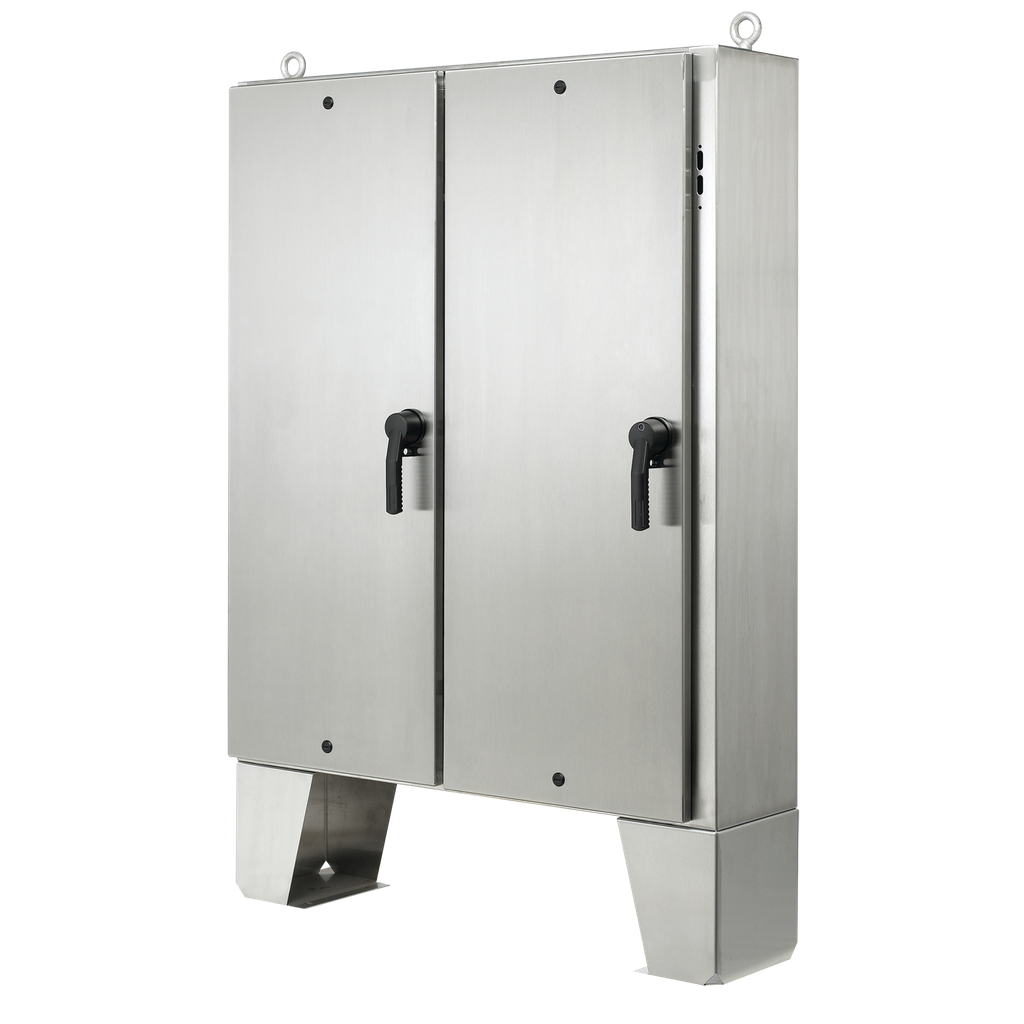

Product image for Hoffman A72Hx 7318SSLPQT General Purpose Stainless Steel Two-Door Floor-Mount Disconnect Enclosures, Type 4X, 72.06" x 73.31" x 18.06", SS Type 304
Email

Hoffman A72Hx 7318SSLPQT General Purpose Stainless Steel Two-Door Floor-Mount Disconnect Enclosures, Type 4X, 72.06" x 73.31" x 18.06", SS Type 304

Manufacturer: nVent Hoffman | Catalog # A72HX7318SSLPQT | North Coast Part # 563164
$26,659.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
This disconnect enclosure is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries. Designed to house the most popular disconnect switches and circuit breakers.

Technical Information

Applications
Arc Flash Safety, Controls and Drives, Corrosive Environments
Body Thickness
2.78 mm
IP Rating
66
Material
Stainless Steel
Size
72.06x73.31x18.06 in
Standard
12,4,4X,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC: Type 3R,Type 3R,UL508A Listed
Type
Preferred Cutout

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510145484
Color
Unpainted
Finish
Brushed
GTiN
00783510145484
Product UPC
78351014548
Weight
638 lb

Dimensions

Depth
18.06 Inch
Height
72.06 Inch
Length
84 Inch
Width
36.00 in
Features
  • 3 Point latching mechanism for simple, reliable one-motion closure
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle
  • Black die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
  • Master door is far right-hand door on all enclosures
  • Master door handle provided with integral screwdriver defeater
  • Mechanical interlock activated by master door prevents slave door from being opened first; doors can be closed in any order
  • Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Bolt-on, 15-inch high stainless steel floor stands
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Collar studs on inside of enclosure back for optional mounting panels
  • Removable centerpost for easy panel installation
  • Bonding provisions on doors and ground studs on body
  • No interior stiffeners to obstruct component mounting
  • Provisions for mounting optional fluorescent light package
  • Flange trough collar on all four sides of door openings
  • Data pocket is high-impact plastic attached with pressure-sensitive adhesive
  • Preferred cutout on right-hand flange provides mounting for most disconnect operator
