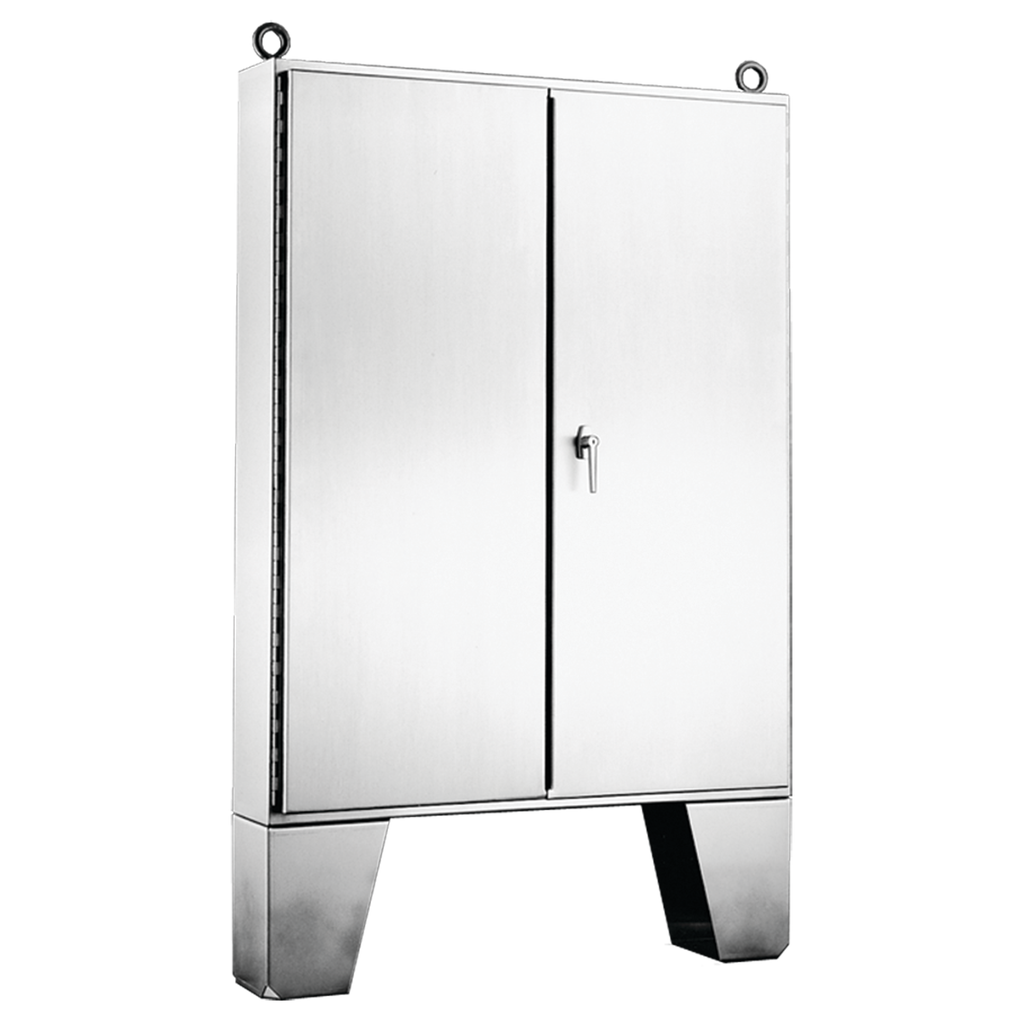

Product image for Hoffman A726012USSLP Two-Door with 3-Point Latches and Floor-Stands, Type 12, 72.06" x 60.06" x 12.06", SS Type 304
Email

Hoffman A726012USSLP Two-Door with 3-Point Latches and Floor-Stands, Type 12, 72.06" x 60.06" x 12.06", SS Type 304

Manufacturer: nVent Hoffman | Catalog # A726012USSLP | North Coast Part # 563265
$17,196.72/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water.

Technical Information

Applications
For Housing Large Components
Cover Type
Continuous Hinged with 3-Point Latch
Gauge
12
IP Rating
55
Material
Stainless Steel
Mounting Type
Floor
Size
72.06x60.06x12.06 in
Standard
CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Type
Double Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510841607
Color
Unpainted
Finish
Brushed
GTiN
00783510841607
Product UPC
78351084160
Weight
487 lb

Dimensions

Depth
12.06 Inch
Height
72.06 Inch
Length
68 Inch
Thickness
2.78 mm
Width
60.06 in
Features
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Strong, rigid construction with body stiffeners
  • Gasketed overlapping doors eliminate need for centerpost
  • Plated steel 3-point latching mechanism and key-locking handle
  • Heavy-gauge continuous hinges support each door
  • Data pocket, provided on door with 3-point latches, is high-impact thermoplastic
  • 12-in. (305-mm) floor stands are bolted to enclosure
  • Heavy-duty lifting eyes are Type 316 stainless steel
  • Panel supports
  • Collar studs for mounting optional panel
  • Bonding provision on doors; grounding studs on body
  • Accessory mounting channel in top of enclosure
