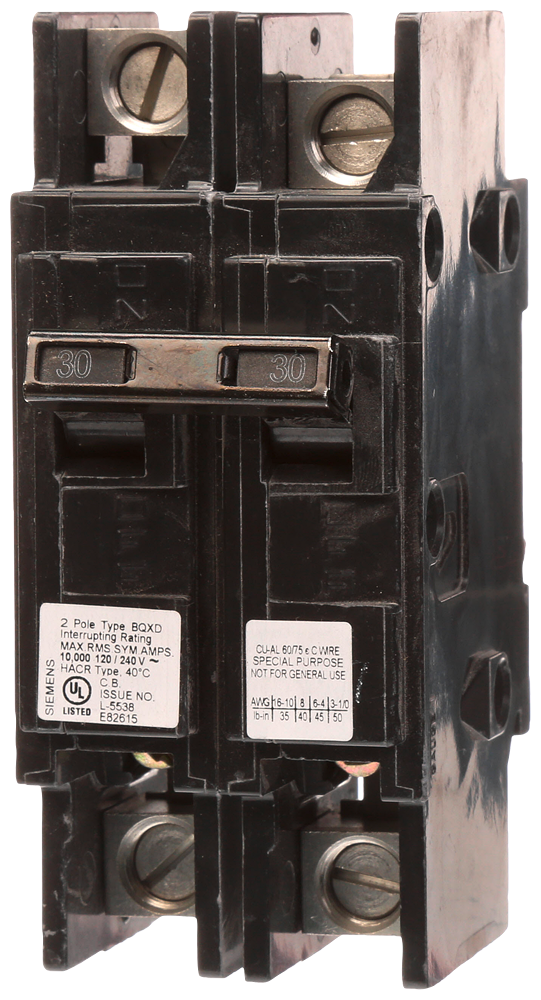

Product image for Siemens BQ2B030QLD 120 and 240 Volt 30 Amp 10 kaic 2-Pole Type BQXD Circuit Breaker with DIN Rail
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

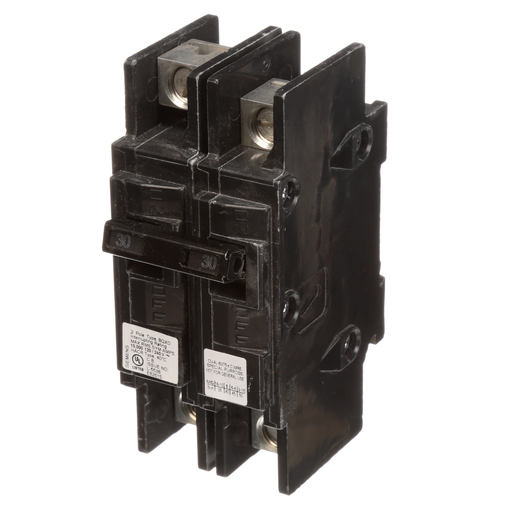

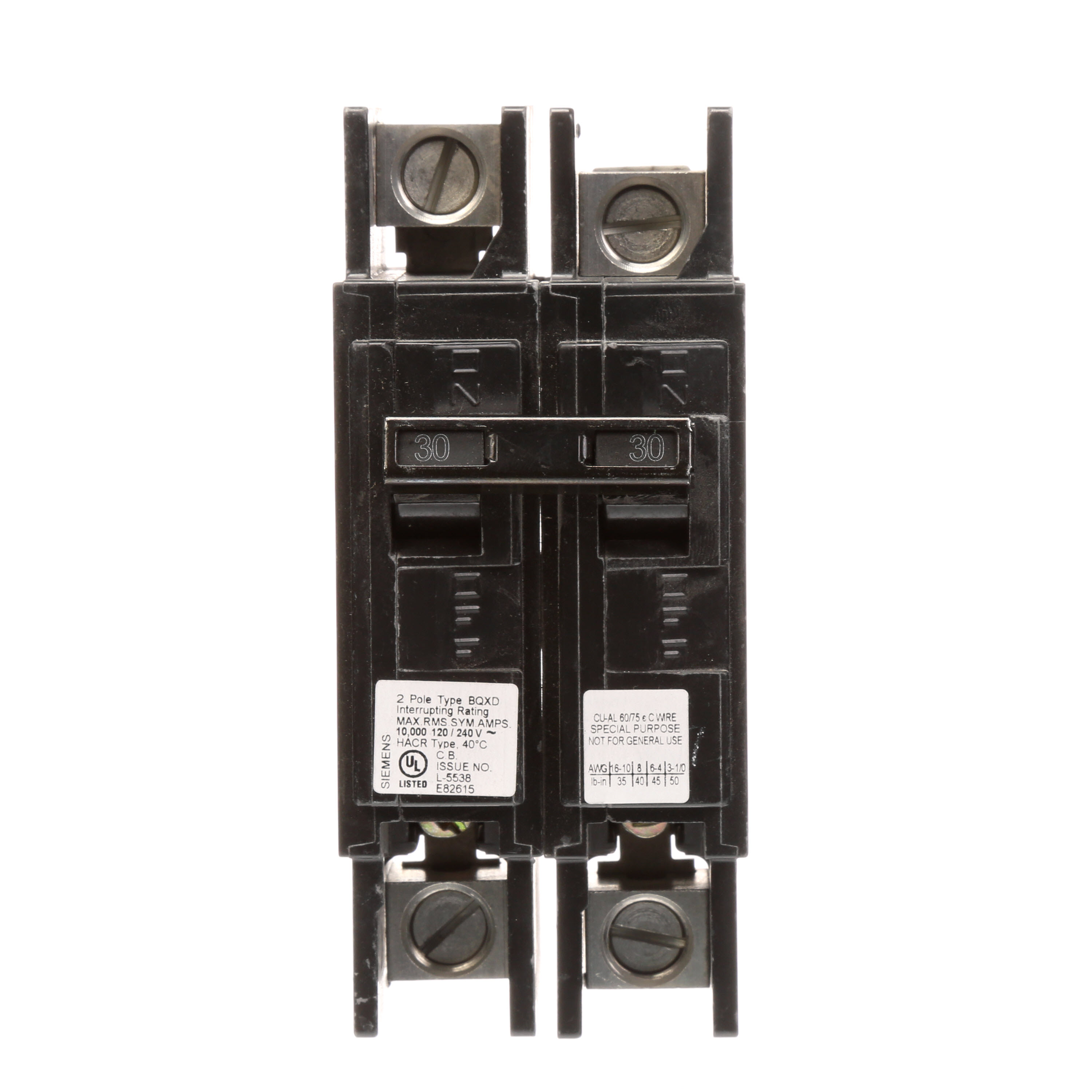

Siemens BQ2B030QLD 120 and 240 Volt 30 Amp 10 kaic 2-Pole Type BQXD Circuit Breaker with DIN Rail

Manufacturer: Siemens | Catalog # BQ2B030QLD | North Coast Part # 567183
$361.88/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQXD. Rated 120/240V (030A) (AIR 10 kA). Special features: DIN Rail mounted, Line and load side lugs included..

Technical Information

Actuator
N/A
Applications
Electrical Distribution
Connection Type
Bolt-On
Current
30 Amp
Enclosure
N/A
Frame
N/A
Interrupt Rating
10 AIC
Load Rating
N/A
Mounting Type
DIN-Rail
Number of Phases
-99999
Number of Poles
2 Pole
Operating Temperature
N/A
Size
2 in
TC Connection
BOLT-ON
Trip Range
Thermal Magnetic
Trip Type
N/A
Type
BQXD
Voltage
120/240 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
N/A

General Product Info

12-Digit UPC
783643411838
GTiN
00783643411838
Product UPC
78364341183
Weight
0.875 lb

Dimensions

Depth
3 in
Height
3.8 Inch
Length
4-1/2 Inch
Width
2.000 in
Additional Information
  • Frame Type BQXD
  • Applicable Standard NEMA AB-1
