Product image for Hubbell CSB215LA 15 Amp 120/277 VAC 2-Pole Light Almond Toggle Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell CSB215LA 15 Amp 120/277 VAC 2-Pole Light Almond Toggle Switch

Manufacturer: Hubbell / Kellems | Catalog # CSB215LA | North Coast Part # 568173
$19.08/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, Light Almond

Technical Information

Actuator
Toggle
Amperage
15 Amp
Applications
Commercial Spec Grade
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Grade
Commercial
Material
Nylon
Number of Poles
2-2 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Double Pole
TC Connection
Back and Side Wired
Type
General Purpose Switches
Voltage
120-277 Volt
Wattage
4.155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585153889
Color
Almond
GTiN
00783585153889
Product Series
General Purpose
Product UPC
78358515388
Weight
0.15 lb

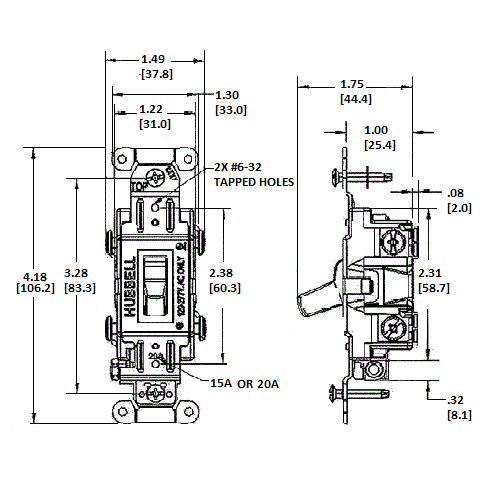

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant
