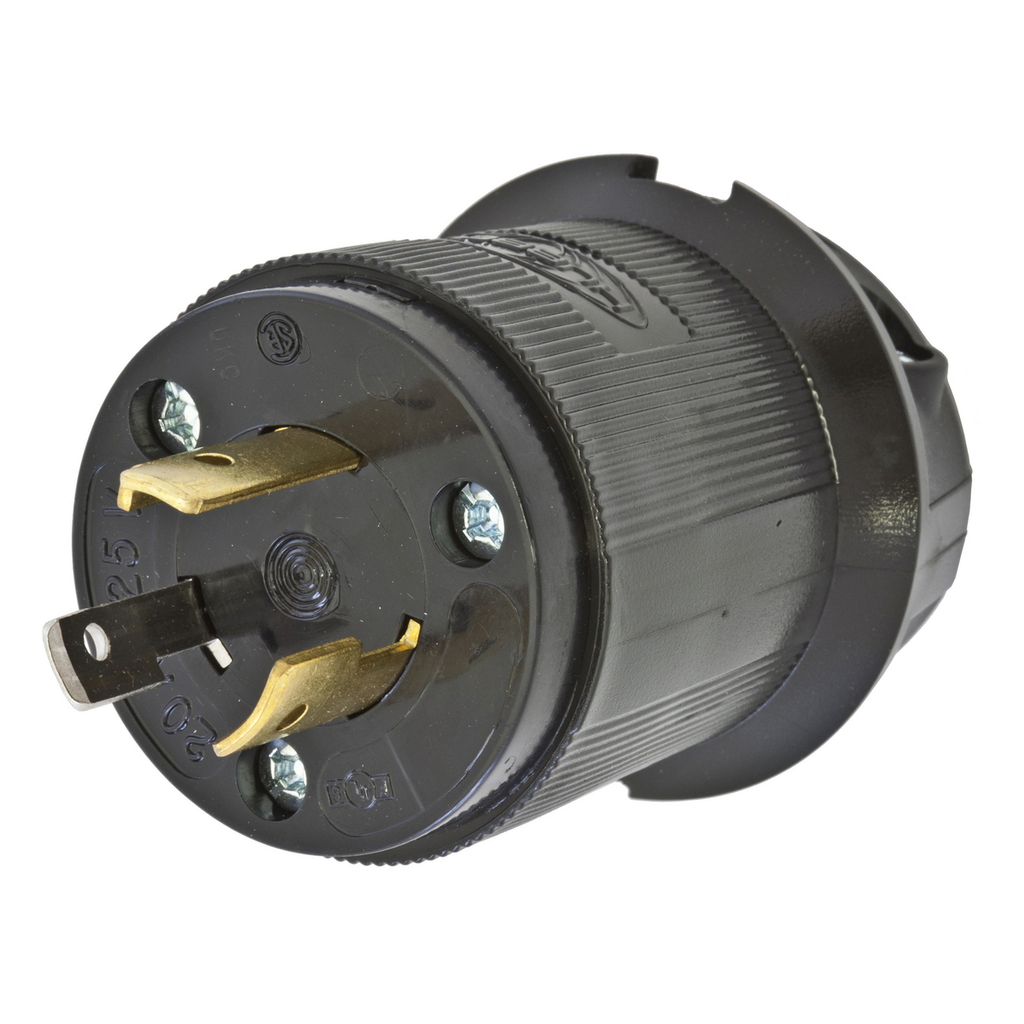

Hubbell HBL2311BK Locking Plug, 20A 125V, L5-20P, BK

Manufacturer: Hubbell / Kellems | Catalog # HBL2311BK | North Coast Part # 568244
$51.01/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125V, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Black Nylon.

Technical Information

Amperage
20 Amp
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.36 - 0.93 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
1 hp
Material
Nylon
Mounting Type
Surface, Cord
NEMA

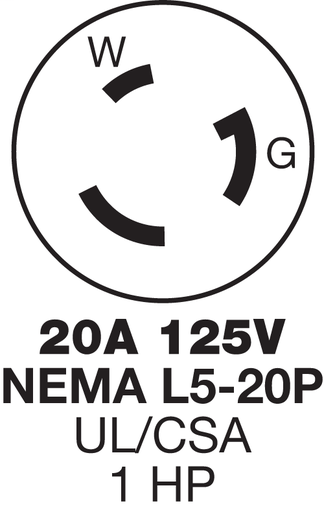

L5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

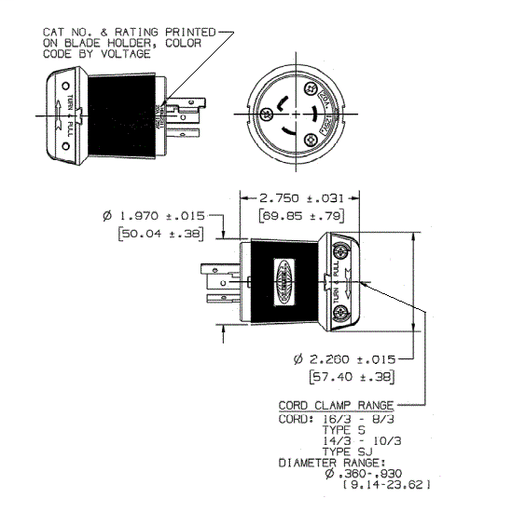

2.26 in x 2.26 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Non-Shrouded
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585172187
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
GTiN
00783585172187
Product UPC
78358517218
Weight
0.15 lb

Dimensions

Height
2-3/4 Inch
Length
2.26 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
