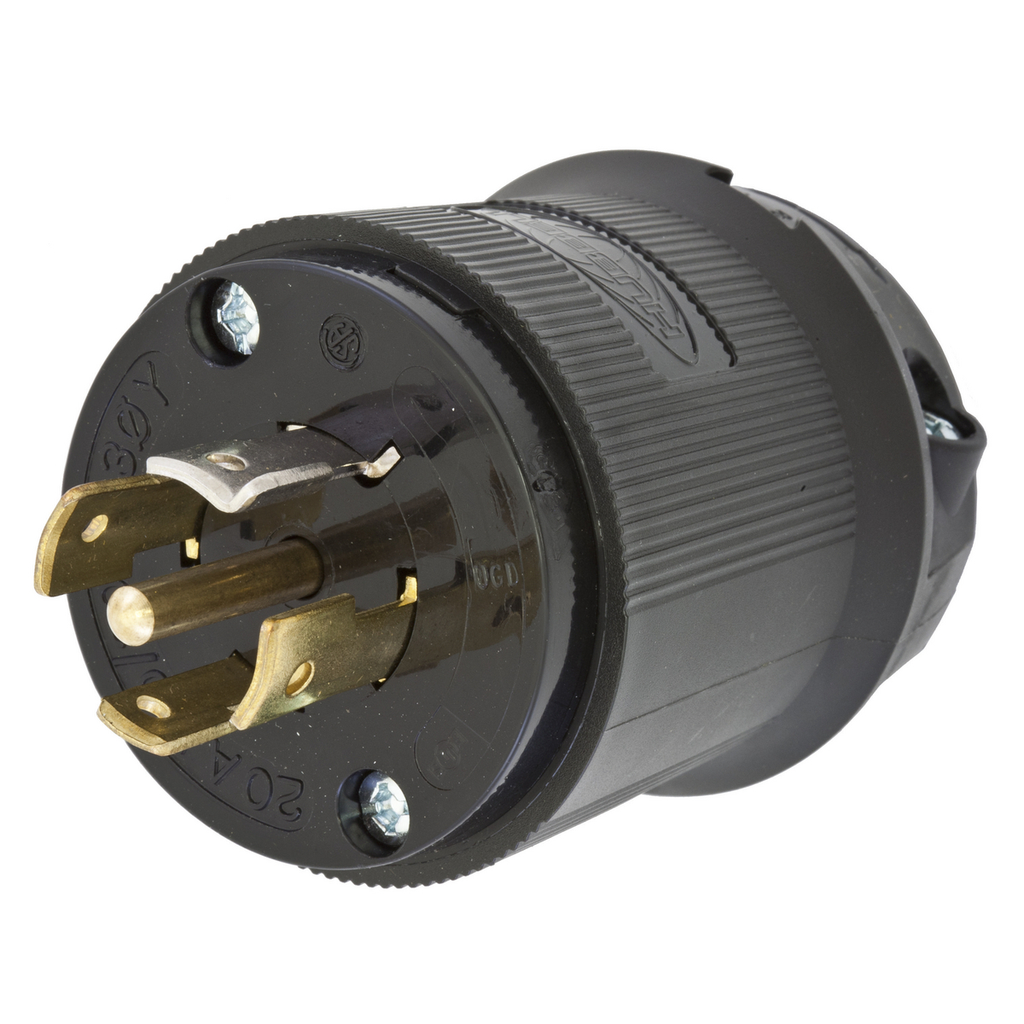

Product image for Hubbell HBL2511BK Locking Plug, 20A 3PH 120/208V, L21-20P, BK
Email

Hubbell HBL2511BK Locking Plug, 20A 3PH 120/208V, L21-20P, BK

Manufacturer: Hubbell / Kellems | Catalog # HBL2511BK | North Coast Part # 568248
$96.76/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Insulgrip® Plug, 20A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-20P, Black Nylon

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L21-20P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size
2.75 in x 2.33 in x 2.33 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585172262
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585172262
Housing Material
Black Nylon
Product UPC
78358517226
Weight
0.3 lb

Dimensions

Height
2.33 Inch
Length
2-3/4 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
