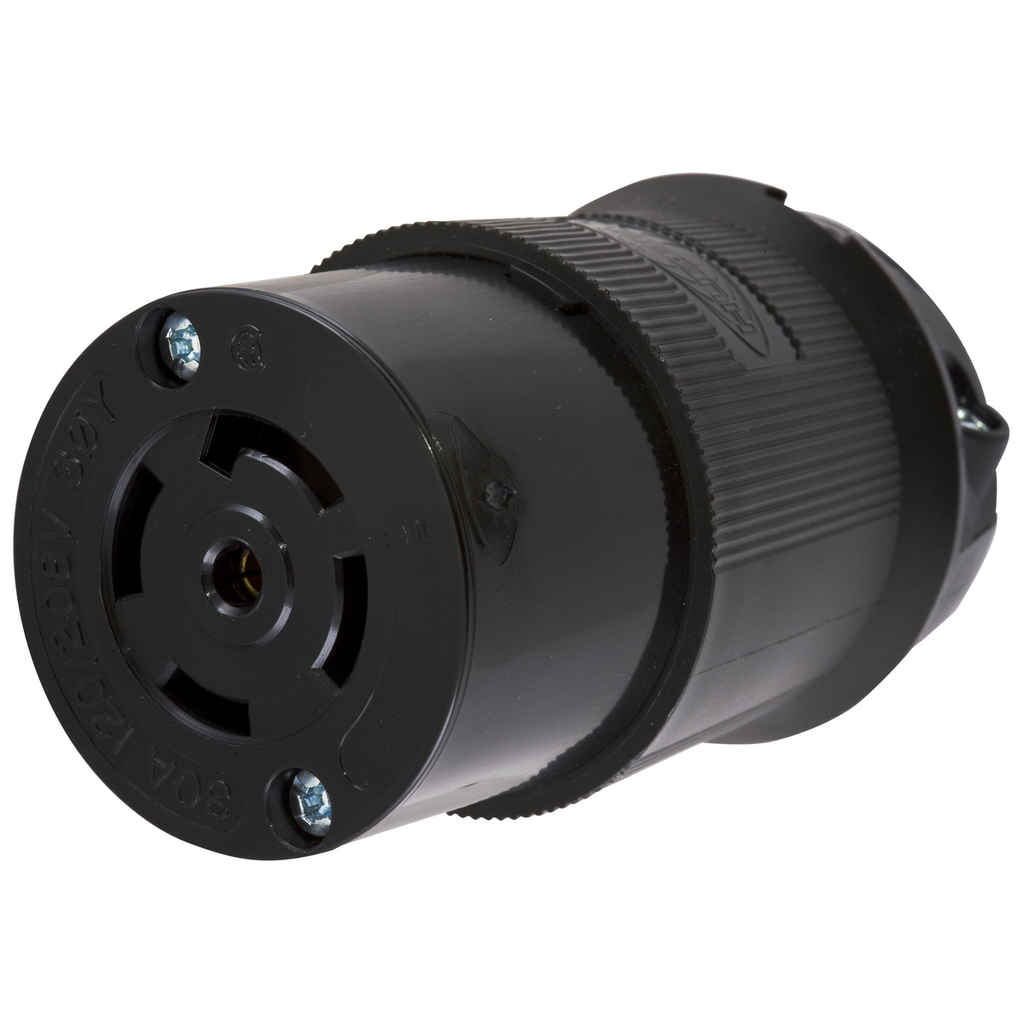

Product image for Hubbell HBL2813BK Locking Connector, 30A 3P 120/208V, L21-30R, BK
Email

Hubbell HBL2813BK Locking Connector, 30A 3P 120/208V, L21-30R, BK

Manufacturer: Hubbell / Kellems | Catalog # HBL2813BK | North Coast Part # 568257
$209.39/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Insulgrip® Connector, 30A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-30R, All black nylon.

Technical Information

Amperage
30 Amp
Applications
For Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Pressure Screw Terminal
Current
30 Amp
Material
Nylon
NEMA
L21-30R
Number of Conductors
5
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Ports
4
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C/-25 to 75 degrees C
Type
Standard, Grounding
Voltage
120/208 Volt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585172293
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585172293
Housing Material
Black Nylon
Product UPC
78358517229
Weight
0.40 lb

Dimensions

Height
3.86 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • All black ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
