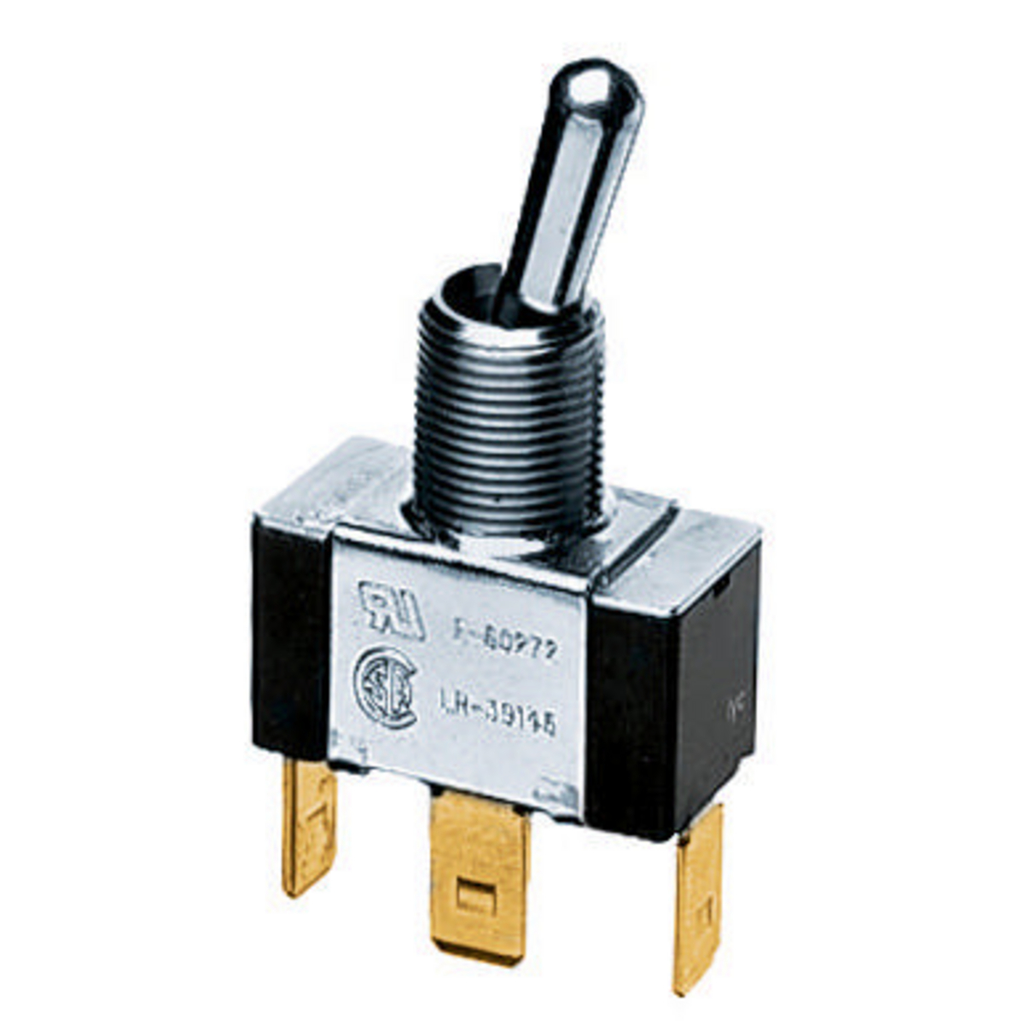

Product image for Hubbell HBL12 3/4 Hp 10 Amp 250 VAC SPDT Panel Mount Screw Terminal Bat Handle Heavy Duty Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL12 3/4 Hp 10 Amp 250 VAC SPDT Panel Mount Screw Terminal Bat Handle Heavy Duty Switch

Manufacturer: Hubbell / Kellems | Catalog # HBL12 | North Coast Part # 56896
$21.06/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Double Throw 10A 250V/10A 125V, Terminal Screws,

Technical Information

Actuator
Switch Position Knob
Amperage
20 Amp
Applications
On/Off/On
Contact Configuration
Two Position
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
0.75 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Thermoplastic
Number of Poles
1-1 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Screw Terminal
Switch Type
Single Pole
TC Connection
Screw Terminal
Type
Bat Handle
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585016740
Color
Natural
GTiN
00783585016740
Product Series
Single Pole/Double Throw
Product UPC
78358501674
Weight
0.05 lb

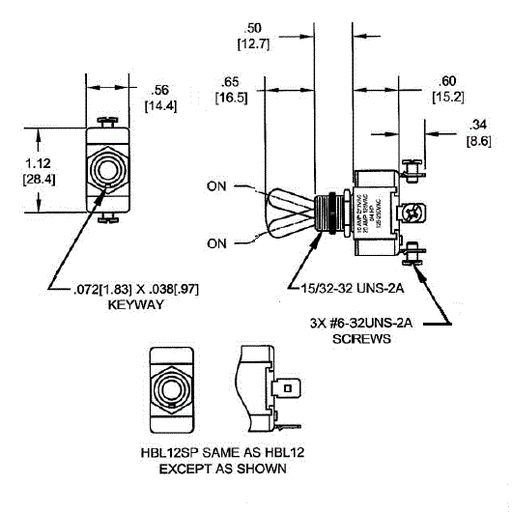

Dimensions

Height
1.12 Inch
Length
2.09 Inch
Width
0.56 in

Certifications and Compliance

Country of Origin
China
Features
  • Nickel Plated for Corrosion Resistance
