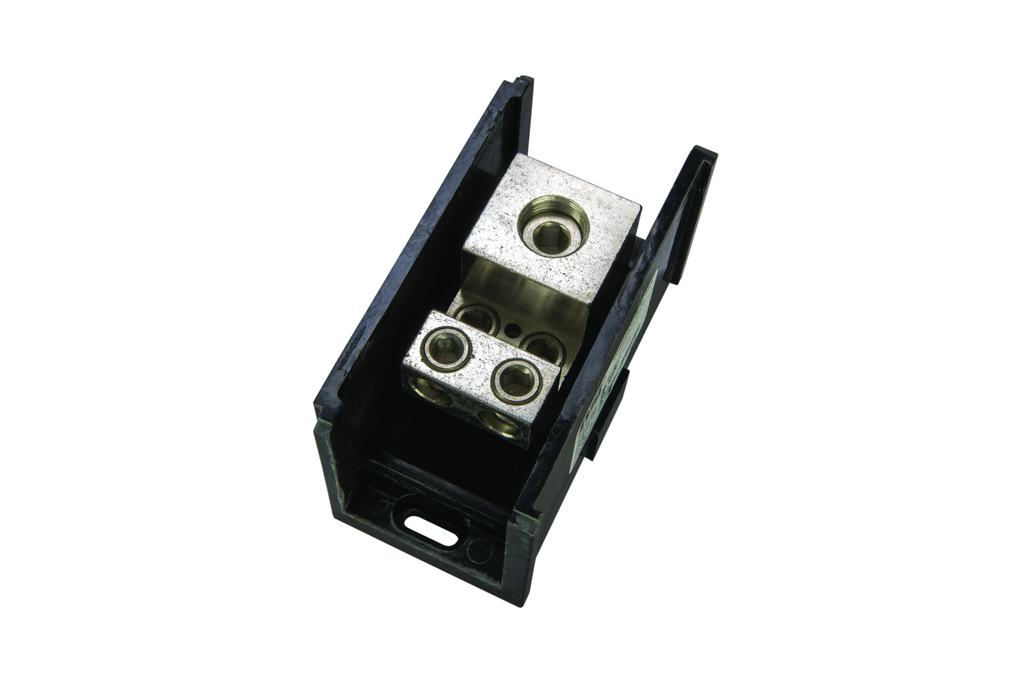

Product image for NSI AL-R1-M4 4 AWG to 500 MCM Line 6 to 4/0 AWG Load 5-Terminal Black Aluminum Single Primary Power Distribution Block
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

NSI AL-R1-M4 4 AWG to 500 MCM Line 6 to 4/0 AWG Load 5-Terminal Black Aluminum Single Primary Power Distribution Block

Manufacturer: NSi Industries | Catalog # AL-R1-M4 | North Coast Part # 56915
$183.07/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Power Distribution Block (1) 500 MCM-4 AWG Primary (4) 4/0-6 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

Technical Information

Amperage
380 Amp
Applications
Terminate, Splice, Tap Power Connectors
Base Material
Glass-Filled Polyester
Body Material
Aluminum
Conductor Size
4 AWG-500 kcmil
Material
Aluminum
Max Temperature
90 degrees C
Mounting Type
2 Mounting Holes
Number of Terminations
5
Size
L=5.50 - H=3.25 - W=2.90 IN
Standard
Recognized To UL1059
Type
Single Primary
Voltage
600 Volt
Wire Size
4 AWG-500 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Connector Blocks

General Product Info

12-Digit UPC
662381165480
Color
Black
GTiN
00662381165480
Product UPC
66238116548

Dimensions

Height
3-1/4 Inch
Length
5-1/2 Inch
Warranty Length
1 yr
Width
2.9 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Each block can stand alone or combine with other blocks to form a multi-block set
  • Add as many holes as you need, in any configuration you want
  • There are no end pieces or connector pieces to fool around with
  • The connector body is made from high strength, high conductivity aluminum alloy and is mounted in a high strength glass-filled polyester base
  • Connector BlokTM covers are available in 3 sizes and fits all styles and configurations
Certifications and Standards
  • CSA
  • UL Recognized
