Product image for Hoffman D666IS Removable Hinge With Quarter-Turn Latch, Contoured, Type 12, 6" x 6" x 6", Gray, Steel
Email

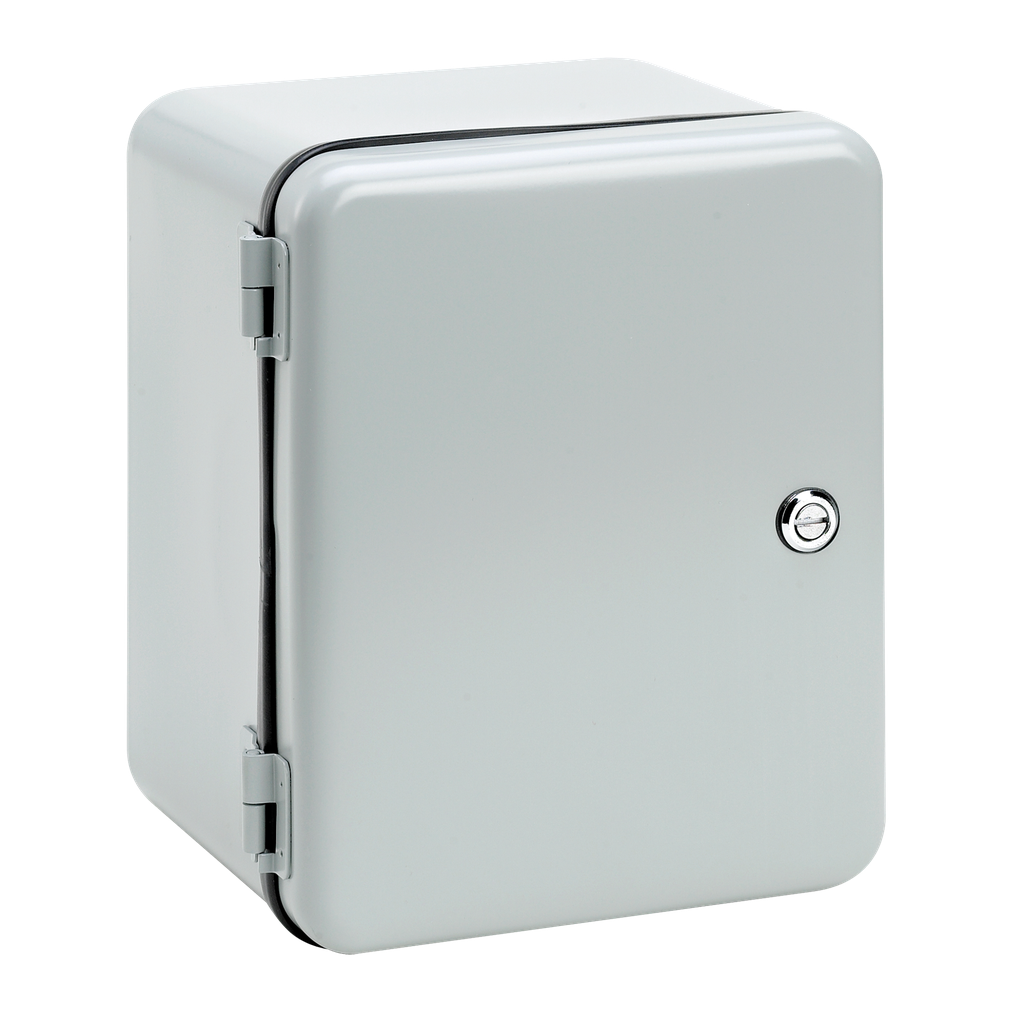

Hoffman D666IS Removable Hinge With Quarter-Turn Latch, Contoured, Type 12, 6" x 6" x 6", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # D666IS | North Coast Part # 569155
$214.82/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Use in applications where panel or an extra-deep cover for mounting of controls is desired. Protects equipment from indoor contaminants.

Technical Information

Applications
Use in Applications Where Panel or an Extra-Deep Cover for Mounting of Controls is Desired and for Protection of Equipment from Indoor Contaminants
Color Coding
ANSI 61
Cover Type
Removable, Hinged with Quick-Release Latch
Gauge
16
Material
Steel
Size
6.00x6.00x6.00 in
Standard
CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Type
Contoured

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
DesignLine

General Product Info

12-Digit UPC
783510604509
Color
ANSI 61 Gray
Finish
Powder Coated
GTiN
00783510604509
Product UPC
78351060450
Weight
4 lb

Dimensions

Depth
6 Inch
Height
6 Inch
Length
6-3/4 Inch
Thickness
1.52 mm
Width
6 in
Features
  • Drawn enclosure
  • No welded seams or sharp corners
  • Removable door with unique lift-off hinges
  • Oil-tight quarter-turn slotted latches
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels
  • Bonding provision on door
