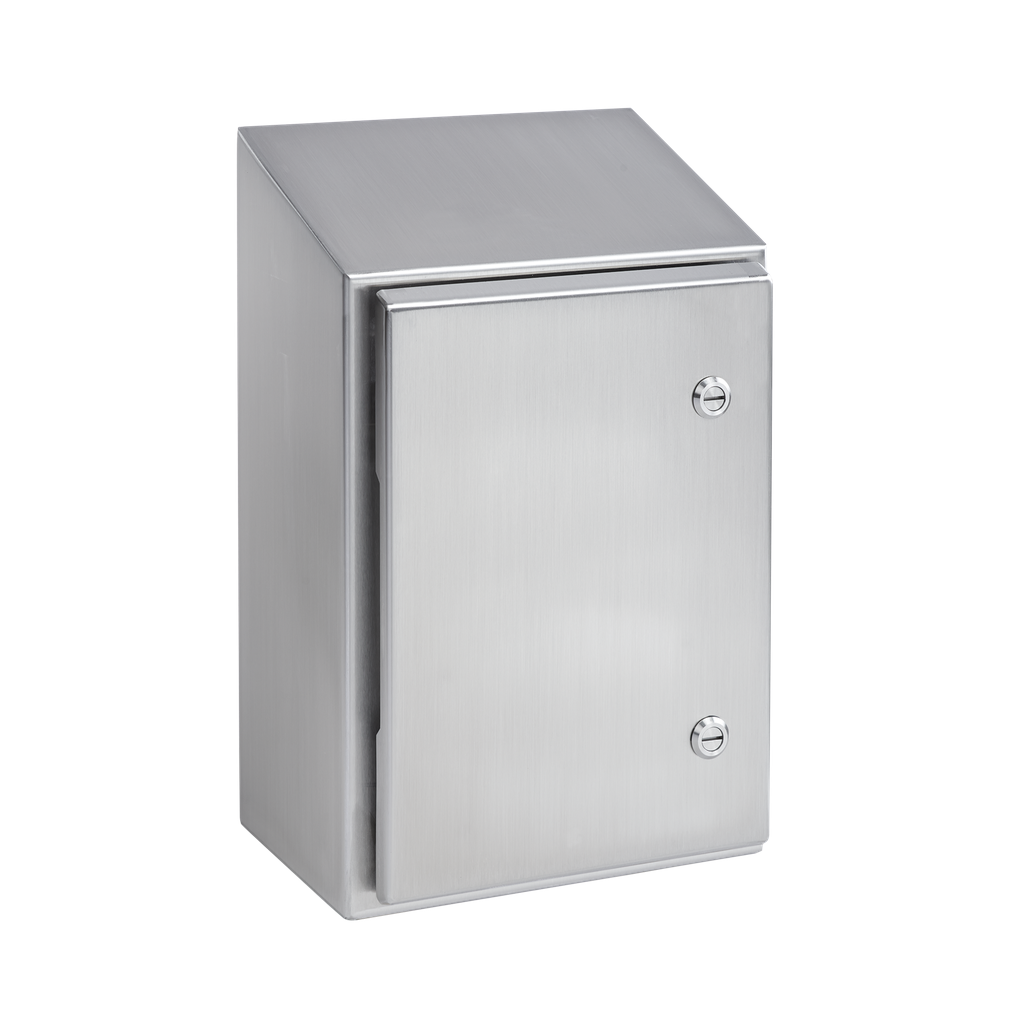

Product image for Hoffman WS202008SS Hoffman WATERSHED, Type 4X, 20" x 20" x 8", SS Type 304
Email

Hoffman WS202008SS Hoffman WATERSHED, Type 4X, 20" x 20" x 8", SS Type 304

Manufacturer: nVent Hoffman | Catalog # WS202008SS | North Coast Part # 571606
$2,416.00/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Specifically designed for use in sanitary washdown production environments, particularly food and beverage manufacturing. HOFFMAN WaterShed Enclosures feature a sloped top, sloped door edges, bullet-style hinges and additional unique features that facilitate washdown runoff.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Cover Type
Hinged, Quarter-Turn Latches
Gauge
14
IP Rating
66
Material
Stainless Steel
Mounting Type
Direct, Panel, Wall
Size
20.00x20.00x8.00 in
Standard
CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12,NSF 169,UL 508A Listed; Type 4, 4X, 12; File Number E61997
Type
Stainless Steel Wall Mounted Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Watershed

General Product Info

12-Digit UPC
783510131111
Color
Stainless Steel
Finish
Brushed
GTiN
00783510131111
Product UPC
78351013111
Weight
41 lb

Dimensions

Depth
8 Inch
Height
20 Inch
Length
29 Inch
Thickness
2 mm
Width
20 in
Features
  • Seams continuously welded and ground smooth
  • Smooth Type 304 stainless steel lift-off bullet-style hinges
  • Hinges are shielded by door
  • Hinged side of door has provisions to allow direct flushing of hinge area
  • 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
  • 97-degree door opening
  • Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
  • Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
  • Stainless steel quarter-turn latches furnished with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels; models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
  • Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
  • Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
