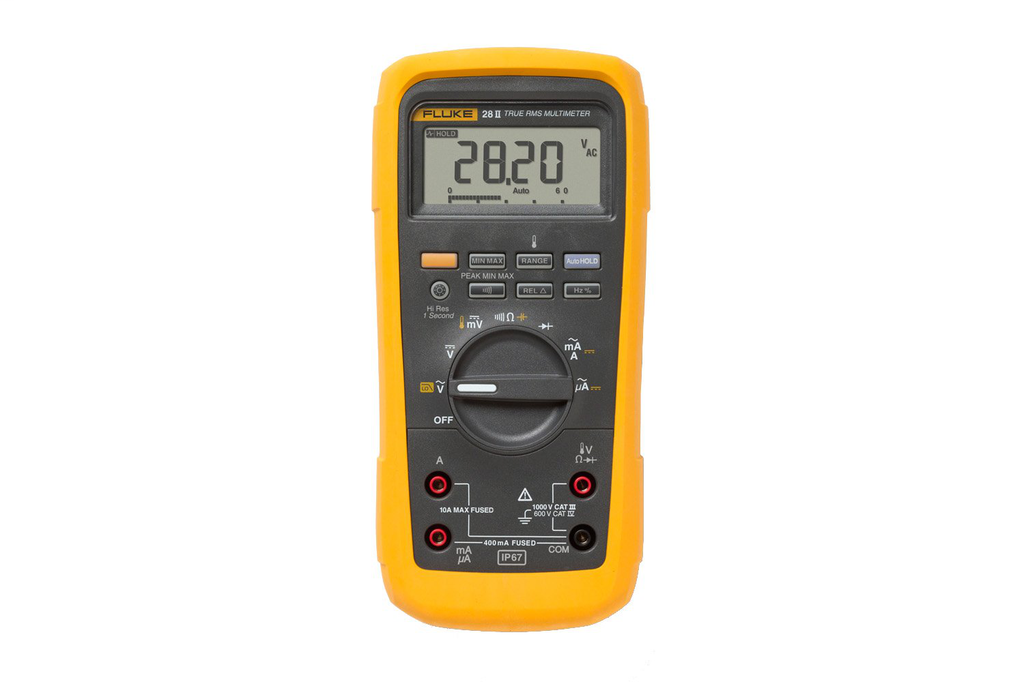

Product image for Fluke FLUKE-28II 1000 VAC/VDC 10 Amp AC/DC Digital Multimeter
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Fluke FLUKE-28II 1000 VAC/VDC 10 Amp AC/DC Digital Multimeter

Manufacturer: Fluke | Catalog # FLUKE-28II | North Coast Part # 571781
$930.95/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The standard for rugged. The Fluke 28 II digital multimeters define the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 degrees Celsius to +55 degrees Celsius (5 degrees Fahrenheit to 131 degrees Fahrenheit, -40 degrees Celsius for up to 20 minutes) and 95 humidity, and have been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 20 Series Multimeters are built to work in the toughest environments.

Technical Information

Accuracy
0.5 % +3 V
Amperage
10/20 Amp
Applications
Troubleshoot electrical problems in harsh conditions
Enclosure
Hard plastic
Operating Temperature
-200 To 1090 degrees C
Resistance
0.1 O to 50 MO Ohm
Temperature Rating
-200 to 1090 C
Type
Digital Multimeter
Voltage
1k Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969461719
GTiN
00095969461719
Product UPC
09596946171
Key Features
  • Measure up to 1000 V AC and DC
  • Measure up to 10 A (20 A for 30 seconds)
  • 10,000 ?F capacitance range
  • Frequency to 200 kHz
  • Extended AC voltage bandwidth 15 Hz to 20 kHz
  • Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
  • Resistance, continuity and diode test
  • Min/Max and average recording to capture variations automatically
  • Peak min-max
  • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
  • New IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
  • Designed to withstand 3 meter drop (with holster)
  • Hi resolution 20,000 count display mode
  • True-rms ac voltage and current for accurate measurements on non linear signals
  • New Backlit keypad buttons allow for easy visibility in lowlit areas
  • Large display digits and 2 level bright white backlight for increased visibility
  • Reversible holster for added protection when not in use
  • Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
  • Long battery life (800 hours)
  • Relative mode to remove test lead resistance from low ohms measurements
  • Auto and manual ranging for maximum flexibility
  • Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
  • MSHA approval
Product Overview
  • The standard for rugged
  • The Fluke 28 II digital multimeters define the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 °C to +55 °C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95% humidity, and have been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 20 Series Multimeters are built to work in the toughest environments.
