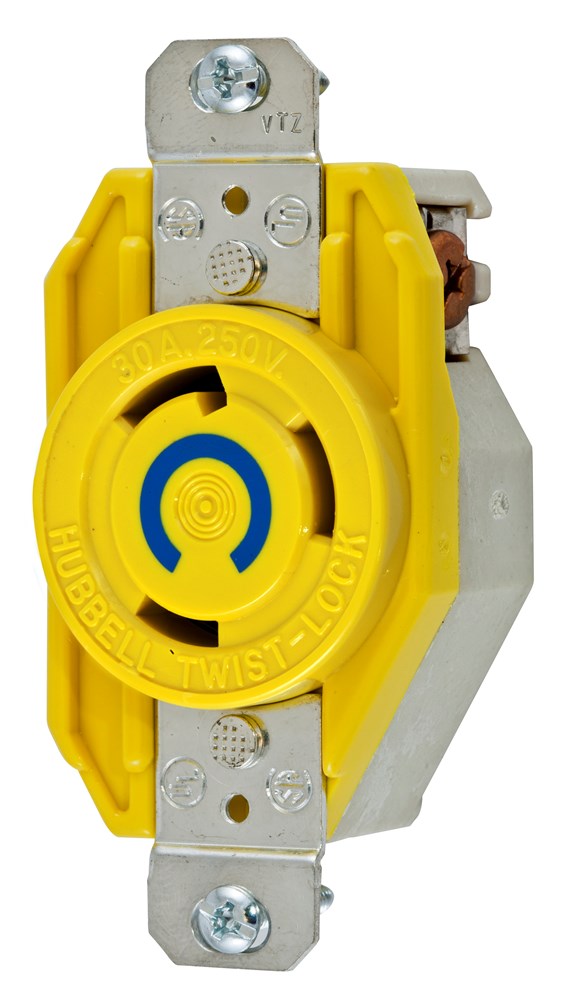

HWDK HBL26CM20 LKG RCPT, 30A 250V,

Manufacturer: Hubbell / Kellems | Catalog # HBL26CM20 | North Coast Part # 572441
$96.62/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Corrosion Resistant Single Flush Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Yellow nylon

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial/Marine
Conductor Size
16-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA
L6-30R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.70 in x 1.31 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Single Receptacle
Voltage
250 Volt
Wattage
7500 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585358505
Color
Yellow
Environmental Conditions
Corrosion Resistant
GTiN
00783585358505
Product UPC
78358535850

Dimensions

Height
1.31 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Corrosion Resistant
