ABB LRELL21/2X36-G PVC CTD ELB 90D

Manufacturer: Thomas & Betts / Ocal | Catalog # LRELL21/2X36-G | North Coast Part # 57355
$1,515.96/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

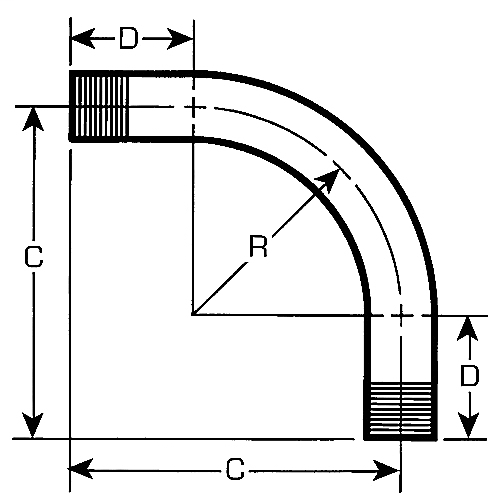

Large Radius Elbow, 40 Mil PVC Coated, Pipe Size 2-1/2 Inch/63 Metric, Angle 90 Degrees, Radius 36 Inch/914.40 Millimeters, Offset 3 Feet 11 Inch/1,193.80 Millimeters, Straight End 11 Inch/279.40 Millimeters, Unbent Length 78 Inch/1,981.20 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Technical Information

Applications
To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Bend Radius
36 Inch
Connection Type
90 Degree Bend
Material
Metal,Steel,Steel
Size
2 1/2 in
TC Connection
90 Degree Bend
Trade Size
2-1/2 Inch
Type
Conduit Elbow - Large Radius

Manufacturer Information

Brand
Ocal Conduit

General Product Info

12-Digit UPC
704508395377
Box Quantity
1
Color
Gray
Finish
Hot Dipped Galvanized
GTiN
00704508395377
Product UPC
70450839537

Dimensions

Inside Diameter
63 mm
Length
78 Inch
Features
  • A minimum .040 inch (40 mil) PVC coating on the exterior.
  • A nominal .002 inch (2 mil) blue urethane on the interior.
  • Ocal-Blue large radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
  • Color coded thread protectors on each end.
