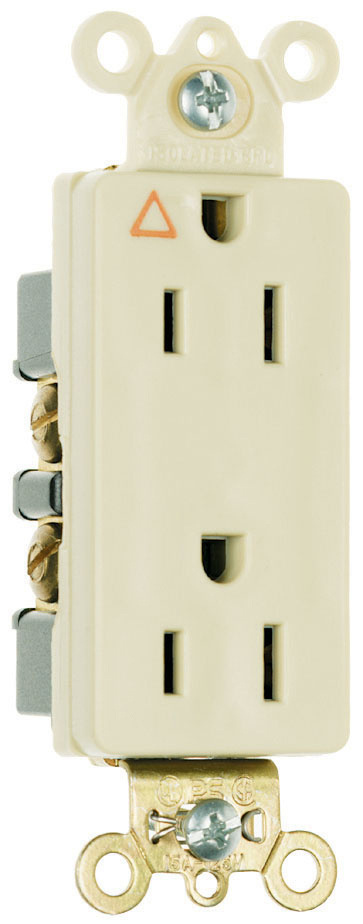

P&S IG8800LA HOSP GRD IG DUP RECEPT

Manufacturer: Legrand / Pass & Seymour | Catalog # IG8800LA | North Coast Part # 577199
$77.31/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet
Isolated Ground Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 20amp 250volt Light Almond

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Dielectric Strength
Withstands 2000V minimum
Grade
Federal Specification,Hospital
Material
Nylon
NEMA
6-20R
Number of Poles
2 Pole
Number of Wires
3.0
Size
1.322 L x .922 W x 3.281 H In
Style
Duplex
TC Connection
Back and side wire
Type
Receptacles
Voltage
250 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Light Almond
GTiN
00785007106718
Product UPC
78500710671
UNSPSC
39121406

Dimensions

Depth
0.922 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • Corrosion-resistant plated steel strap.
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • For covering patents, see www.legrand.us/patents.
  • Auto-ground clip assures positive ground.
  • High-impact resistant nylon face resists impacts and scrapes.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
