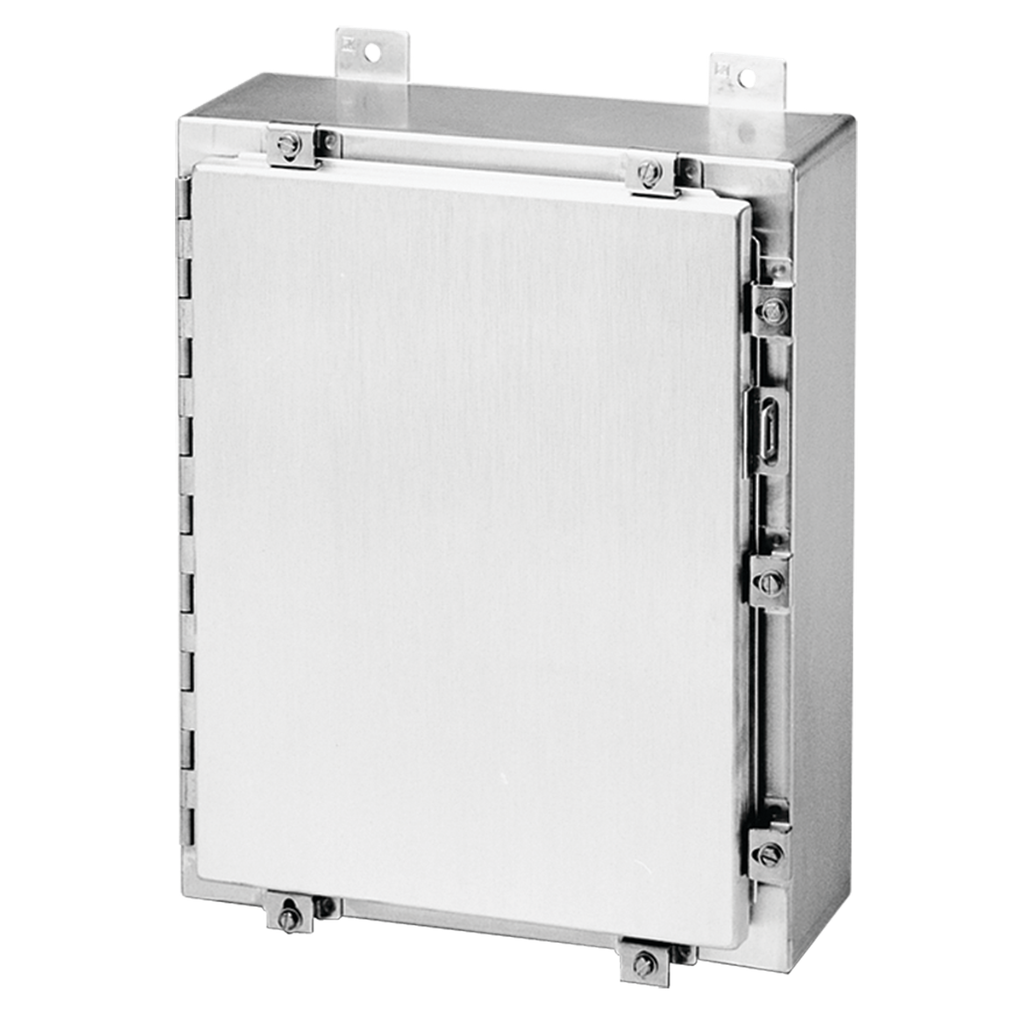

Product image for Hoffman A36H2408ALLP Continuous Hinge with Clamps, Type 4X, 36" x 24" x 8", Aluminum
Email

Hoffman A36H2408ALLP Continuous Hinge with Clamps, Type 4X, 36" x 24" x 8", Aluminum

Manufacturer: nVent Hoffman | Catalog # A36H2408ALLP | North Coast Part # 579757
$3,669.26/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight, Type-4X solution that features a hinged cover that secures on the three, non-hinged sides via stainless steel clamps and screws. This enclosure is ideal for protection of components and controls in highly-corrosive indoor or outdoor environments such as petrochemical processing plants, sewage treatment plants, and marine environments.

Technical Information

Applications
Controls and Drives; Corrosive Environments
IP Rating
66
Material
Aluminum
Size
36.00x24.00x8.00 in
Standard
12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Type
Aluminum single gang round receptacle cover

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510273200
Color
Unpainted
Finish
Brushed
GTiN
00783510273200
Product UPC
78351027320
Weight
33 lb

Dimensions

Depth
8 Inch
Height
36 Inch
Length
41-1/4 Inch
Thickness
2 mm
Width
24 in
Features
  • Lightweight, Type 4x hinged enclosure.
  • Seams continuously welded and ground smooth
  • Rolled lip around three sides of door and all sides of enclosure opening
  • Stainless steel door clamp assemblies
  • Door is easily removed by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Hasp and staple for padlocking
  • Tapped pads provided for mounting optional panels; panel screws are plated
  • Oil-resistant gasket
  • Enclosures are unpainted; door front has a smooth, brushed finish
