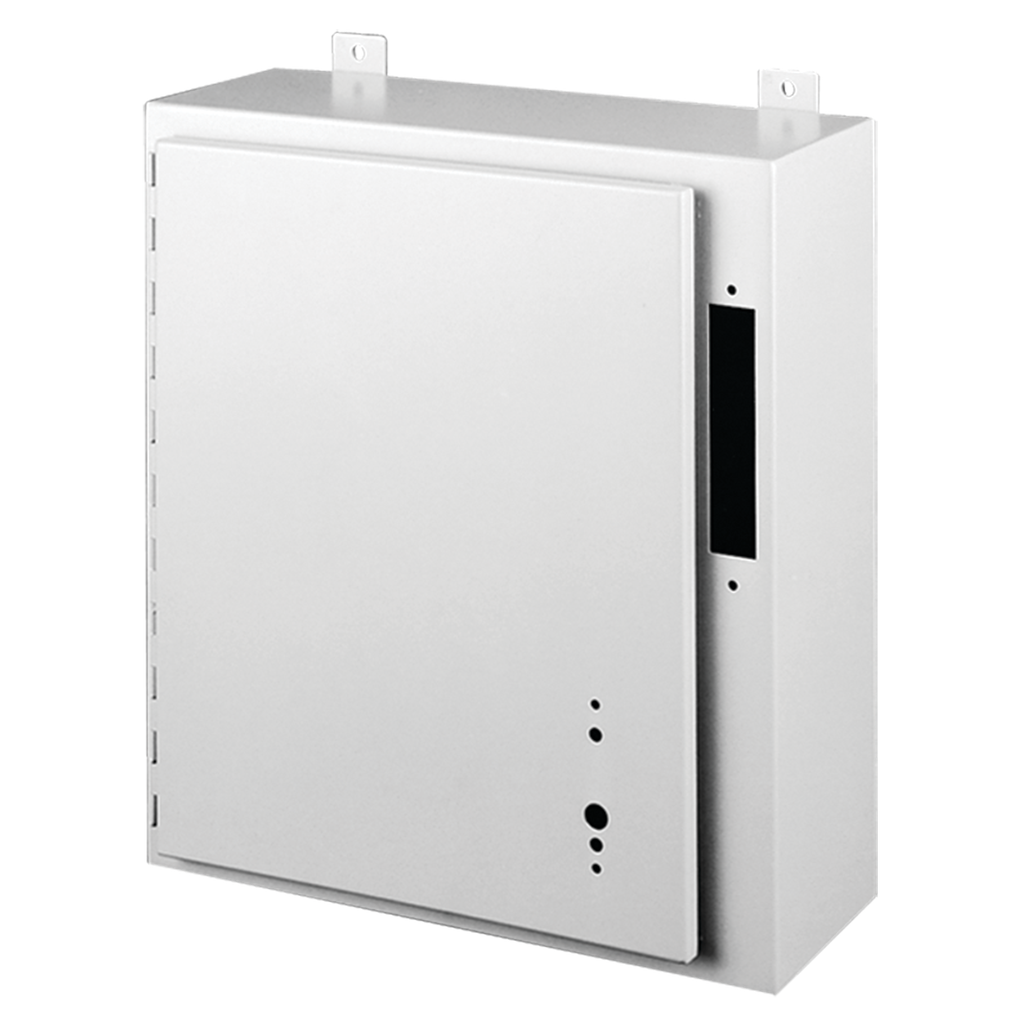

Product image for Hoffman A48AB3816LP Allen-Bradley 1494 Cutout Disconnect Enclosure, Type 12, 48" x 37.38" x 16", Steel
Email

Hoffman A48AB3816LP Allen-Bradley 1494 Cutout Disconnect Enclosure, Type 12, 48" x 37.38" x 16", Steel

Manufacturer: nVent Hoffman | Catalog # A48AB3816LP | North Coast Part # 580779
$2,754.03/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These enclosures house Allen-Bradley® Bulletin 1494F flange-mount disconnect switches and Bulletin 1494D flange-mount operators for circuit breakers.

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Power Distribution
Material
Steel
Size
48.00x37.38x16.00 in
Standard
CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
Disconnect, Wall-Mount

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510327804
Finish
Powder Coated
GTiN
00783510327804
Product UPC
78351032780
Weight
152 lb

Dimensions

Depth
16 Inch
Height
18-1/4 Inch
Length
53 Inch
Thickness
1.9 mm
Width
38.50 in
Features
  • Holes provided in body and door for mounting disconnect switch, operating mechanism and door hardware
  • Type 12 rated door gasket
  • Seams continuously welded and ground smooth
  • Includes locking bar(s) for door hardware, spacers and screws to support disconnect panel, and instructions for installing disconnects
  • Collar studs provided for mounting optional panels
  • Removable door with continuous hinge
  • External mounting brackets
  • Data pocket is high impact thermoplastic
  • External-formed flange around all sides of enclosure opening
  • Guide bracket(s) and door catch welded to door
