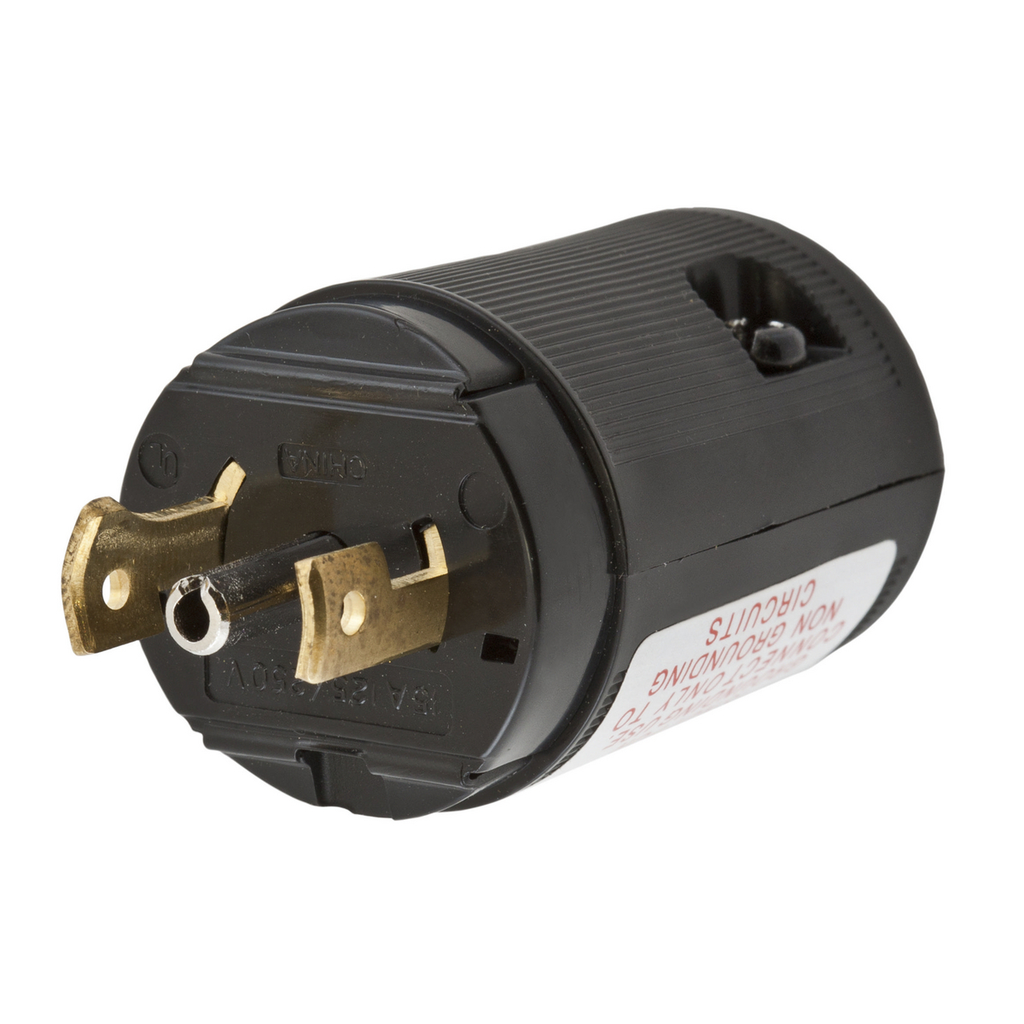

Hubbell HBL7485-V 15A 125/250V Midget Twist-Lock VALISE Black Nylon Plug, Straight

Manufacturer: Hubbell / Kellems | Catalog # HBL7485V | North Coast Part # 58148
$41.72/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Midget Twist-Lock®, Industrial, Male Valise® Plug, 15A 125/250V AC, 3-Pole 3-Wire Non-Grounding, NEMA ML-3P, With Insulation Displacement Terminal, Black.

Technical Information

Amperage
15 Amp
Applications
For Industrial/Commercial
Conductor Size
18-14 AWG
Cord Size
0.3 - 0.43 in
Cord Type
Portable
Current
15 Amp
Dielectric Strength
2000 V
Grounding
No
Material
Nylon
Mounting Type
Surface, Cord
NEMA
ML-3P
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
1.61 in x 1.18 in x 1.18 in
Standard
Fed.Spec.W-C-596
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Midget, Standard
Voltage
125/250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585237435
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
GTiN
00783585237435
Product UPC
78358523743
Weight
0.10 lb

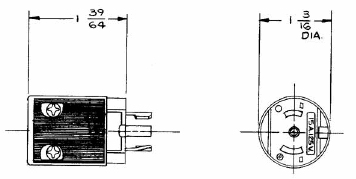

Dimensions

Height
1.18 Inch
Length
1.61 Inch
Width
1.18 in

Certifications and Compliance

Country of Origin
China
Features
  • Fully insulated, abuse resistant nylon housing
  • Insulation displacement terminals reduce wiring time
  • Insulation displacement terminal
  • Totally insulated body adds extra measure of safety
  • Standard Product
