Ocal LB18-4X-G 1/2" PVC-Coated Ocal-Blue® LB-Style Conduit Body, Form-8 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # LB18-4X-G | North Coast Part # 581677
$223.17/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
PVC Coated Conduit Body, LB Shape, Form 8 UL-4X, Size 1/2 Inch/16 Metric, Iron, Dark Gray

Technical Information

Applications
Act as Pull Outlets for Conductors Being Installed
Enclosure
NEMA 4X
Form Type
8
Hub Size
1/2 in ; 16 mm
Material
Iron
Size
1/2 in
Standard
CSA,CULus E2969
Trade Size
1/2 Inch
Type
Form 8 UL-4X Conduit Body

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508024352
Color
Gray
Finish
PVC Coated
GTiN
00704508024352
Product UPC
70450802435

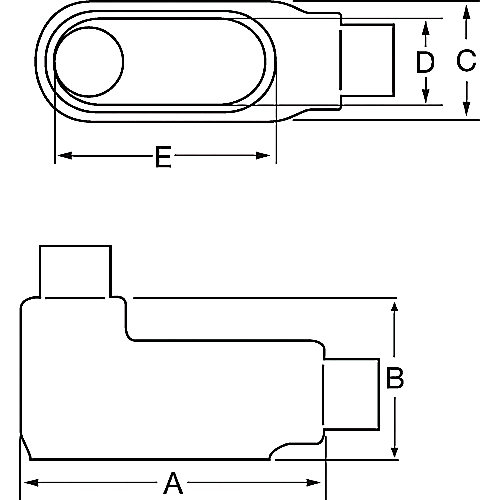

Dimensions

Height
2.22 Inch
Length
4.94 Inch
Width
1.38 in
Certifications
  • UL
  • CSA
Application
  • Make 90° bends in conduit runs
  • Provide taps for branch conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • Act as pull outlets for conductors being installed
  • Connect conduit sections
  • Provide openings for making splices and taps in conductors
Features
  • Double coated superior corrosion protection, bodies and covers coated inside and out with .002 in. blue urethane, then exterior coated with a minimum of .040 in. PVC.
  • UL Listed Type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow.
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.
Notes
  • Dimensional values are of uncoated conduit bodies.
