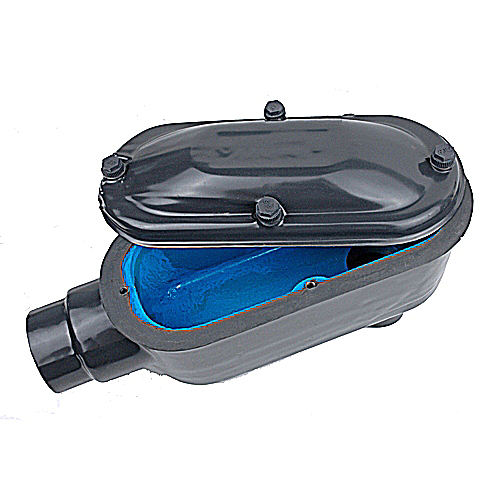

Product image for Ocal LB68-4X-G 2" PVC-Coated Ocal-Blue® LB-Style Conduit Body, Form-8 - Gray
Image thumbnail 0
Image thumbnail 1
Email

Ocal LB68-4X-G 2" PVC-Coated Ocal-Blue® LB-Style Conduit Body, Form-8 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # LB68-4X-G | North Coast Part # 581687
$801.22/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Pick Up

at Auburn Closes 3:00pm PT
2 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page
PVC Coated Conduit Body, LB Shape, Form 8 UL-4X, Size 2 Inch/53 Metric, Iron, Dark Gray

Technical Information

Applications
Act as Pull Outlets for Conductors Being Installed
Enclosure
NEMA 4X
Hub Size
2 in
Material
Iron
Size
2 in
Standard
CSA,CULus E2969
Trade Size
2 Inch
Type
Form 8 UL-4X Conduit Body

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508024758
Color
Gray
Finish
PVC Coated
GTiN
00704508024758
Product UPC
70450802475

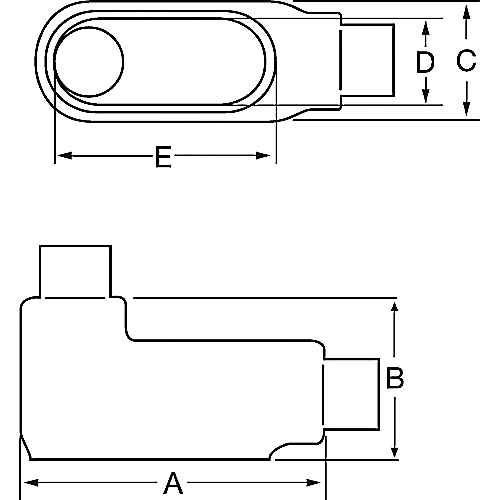

Dimensions

Height
4.41 Inch
Length
11 Inch
Width
3.75 in
Features
  • UL Listed Type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow.
  • Double coated superior corrosion protection, bodies and covers coated inside and out with .002 in. blue urethane, then exterior coated with a minimum of .040 in. PVC.
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.
Application
  • Provide taps for branch conduit runs
  • Act as pull outlets for conductors being installed
  • Provide for access to conductors for maintenance and future system changes
  • Make 90° bends in conduit runs
  • Provide openings for making splices and taps in conductors
  • Connect conduit sections
Certifications
  • CSA
  • UL
Notes
  • Dimensional values are of uncoated conduit bodies.
